Parts & Accessories

Pre-owned

Orion 460-5 Series 1

2011 - 2013

Orion 460-5

Berths
5
Axle
Single
Shipping Length
6.508m / 21′4″
Internal Length
5.345m / 17′6″
Overall Width
2.19m / 7′2″
MTPLM
1345kg
MRO
1181kg more info
Payload
164kg

All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.

Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.

Key Features

  • AL-KO chassis mounted spare wheel carrier and steel spare wheel
  • 14” Alloy wheels with bespoke caravan tyres
  • Status 550 directional television aerial
  • Italian design caravan in Bailey ‘Walnut’ finish
  • Standard ‘Unity’ soft furnishings
  • Truma Ultrastore water heater (gas/electric operation)
  • Thetford 107 litre refrigerator with full width freezer

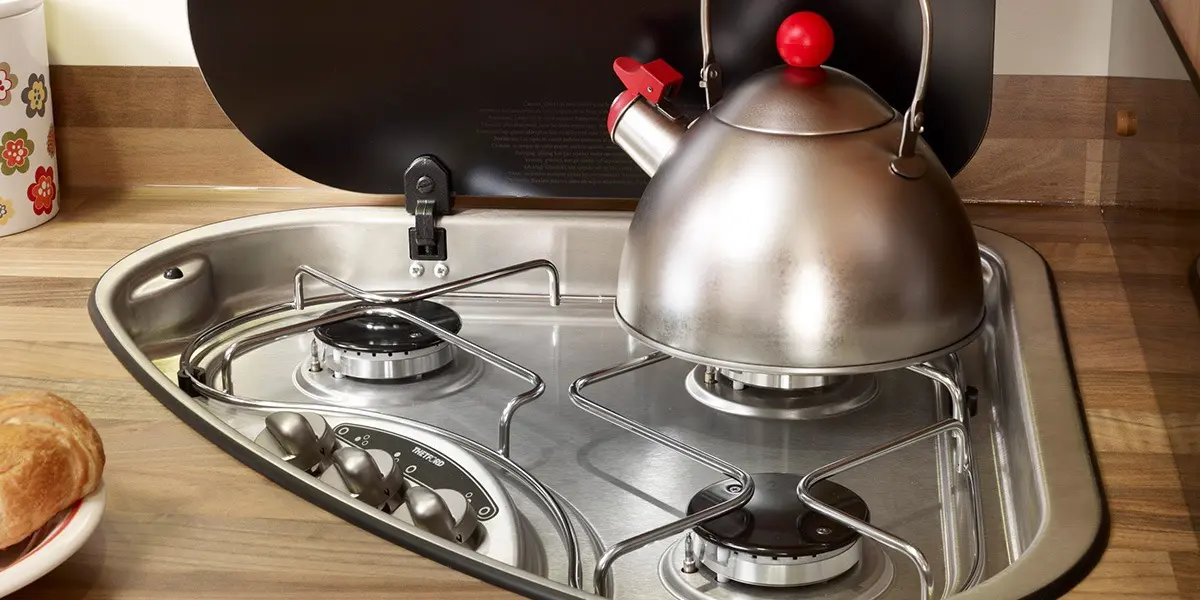

  • Thetford Duplex combination oven and grill with 3-burner gas hob incorporating flush fitting glass hinged lid and conveniently located controls
  • Stainless steel 800 watt microwave oven
  • ‘Belfast’ style washroom sink and mixer tap

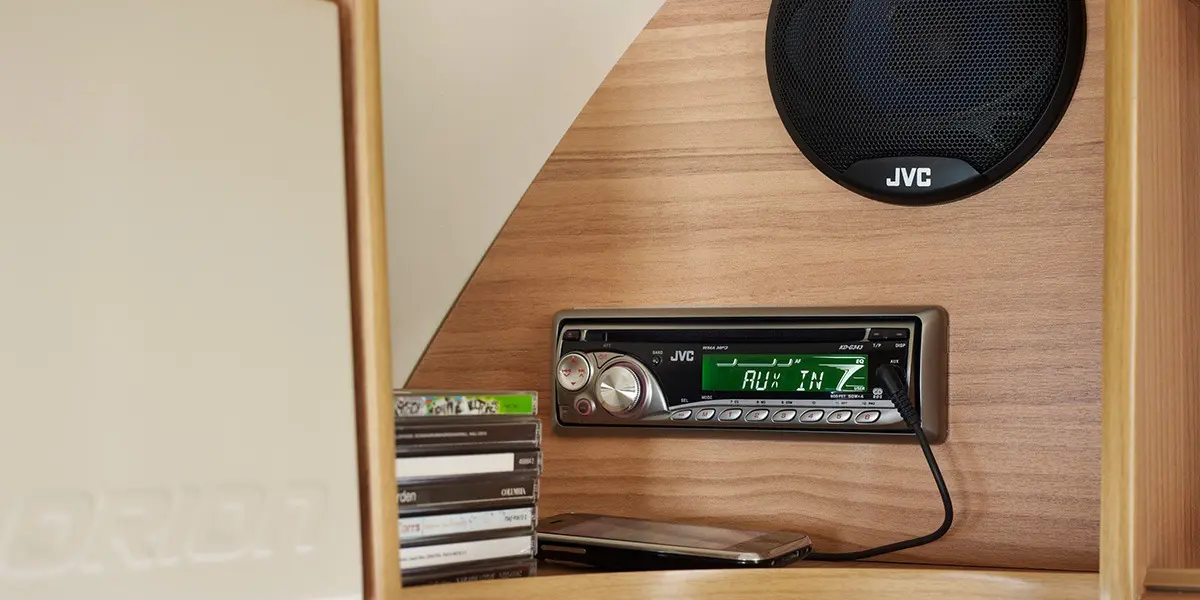

  • Branded Radio / CD / MP3 player with iPod connectivity
View full screen gallery

Details

  • Alu-Tech fully laminated five part body shelf assembly (Panel thickness of: sides 37mm, ceiling 37mm & floor 44mm) housed in a structural interlocking aluminium framework
  • EN-1645 Grade III classification for heating and thermal insulation (Cold chamber tested)
  • Safety & Security AL-KO chassis mounted spare wheel carrier and spare wheel (steel spare wheel)
  • AL-KO AKS 3004 stabiliser
  • Optional AL-KO secure wheel lock
  • AL-KO galvanised steel chassis, axle, braking system and running gear
  • 14” Alloy wheels with bespoke caravan tyres
  • Large aperture two part Hartal exterior door
  • Polyclassic double glazed windows throughout
  • Retractable flyscreens and blinds to all windows and roof lights
  • Dedicated gas bottle, battery and toilet cassette compartments with exterior access doors
  • Status 550 directional television aerial
  • Midi Heki rooflight located over front saloon
  • Mini Heki roof light located over rear bedroom (model specific)
  • Italian design caravan furniture in Bailey ‘walnut’ finish
  • Standard ‘Unity’ soft furnishings with co-ordinating curtains plus two bolster cushions and two scatter cushions
  • Fully sprung upholstery (except split cushions in bunk make-up) featuring premium quality fabrics, high density filling and superior cushion construction and a De-Luxe sprung double bed mattress (model specific)
  • Split section loose fit drop in carpets Services
  • Truma Ultrastore water heater (gas/electric operation)
  • Whale Aqua Smart II on-board water pump
  • Whale floor mounted space heater and blown air heating system
  • Inboard pressurised hot and cold fresh water system with reinforced hosing
  • 230v power supply with two interior sockets
  • TV station with 230v, 12v and aerial sockets
  • 12v internal spotlights
  • 12v ceiling lights
  • Additional LED pelmet lights above central kitchen
  • Thetford 107 litre refrigerator with full width freezer
  • Thetford Duplex combination oven and grill
  • Thetford 3-burner gas hob incorporating flush fitting glass hinged lid and conveniently located controls
  • Thetford kitchen sink with removable draining board, chopping board and mixer tap
  • Stainless steel 800 watt microwave oven conveniently located at eye level
  • Thetford C-260 cassette toilet

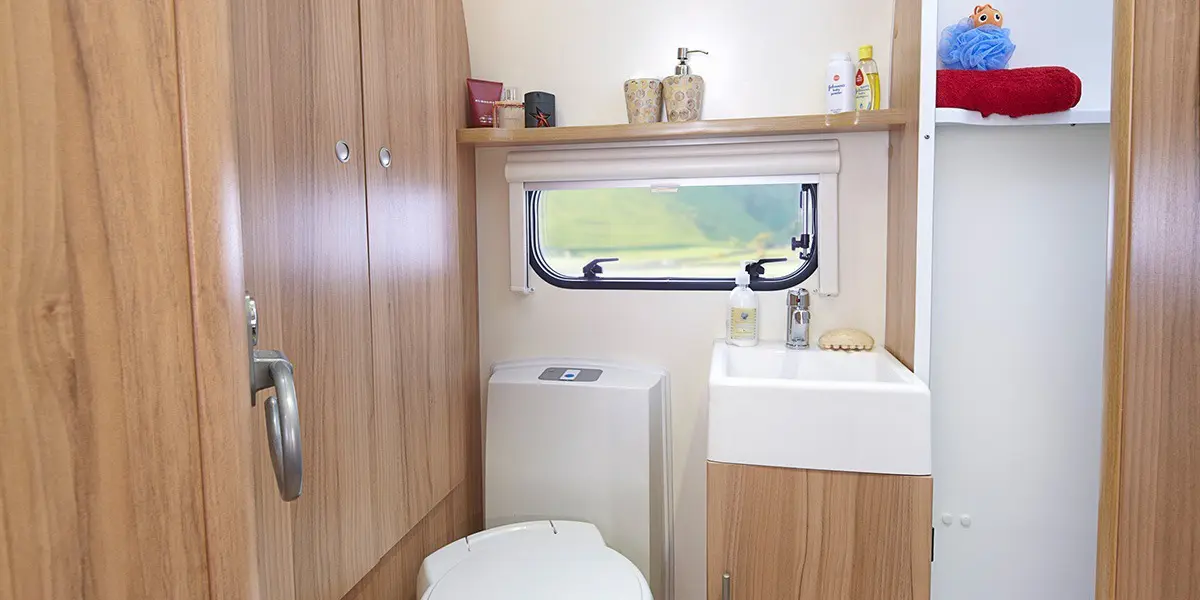

  • ‘Belfast’ style washroom sink and mixer tap
  • Inboard shower unit and mixer tap
  • Branded Radio/CD/MP3 player with iPod connectivity
  • Branded stereo speakers for superior sound quality
Year last produced
2013
Range
Orion
Model
460-5
Series
Series 1
Berths
5
Internal Length
5.345m / 17′6″
Shipping Length
6.508m / 21′4″
Overall Width
2.19m / 7′2″
Overall Height
2.63m / 8′8″
Internal Headroom
1.96m / 6′5″
Awning Size
941cm
Tyre Sizes
185/ R14 LI104N
MTPLM
1345kg
MRO
1181kg
Total User Payload
164kg

Bed Sizes:

Front Double
5’0” x 6’6” Measured from the widest point
Front N/S Single
5’0” x 2’3” Measured from the widest point
Front O/S Single
5’0” x 2’3” Measured from the widest point
N/S Single
6’3” x 2’3” Measured from the widest point
O/S Single
6’0” x 2’3 Measured from the widest point

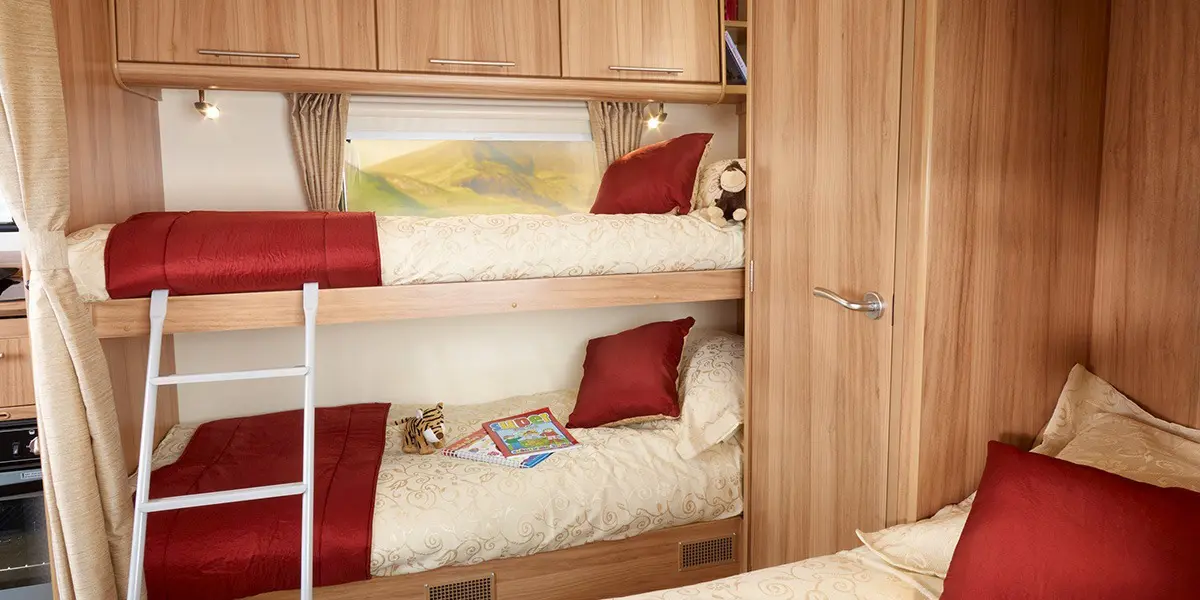

O/S Overhead Single
5’6” x 2’0” Measured from the widest point
