Phoenix+ 650

RRP £19,999

Phoenix+ 650

Berths
5
Axle
Single
Shipping Length
7.369m / 24′2″
Internal Length
5.841m / 19′2″
Overall Width
2.212m / 7′3″
MTPLM
1409kg
MRO
1244kg more info
Payload
165kg upgrade info
RRP Price
£19,999

All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.

Key Features

  • NEW ‘Dove Grey’ and ‘Polar White’ Alu-Tech Bodyshell
  • NEW ‘Phoenix+’ graphics scheme
  • NEW Silver finish interior grab handle for ease of access in and out of the caravan
  • NEW Design ‘Silver’ finish 14” TUV tested alloy wheels
  • Vertical front skylight surround with integral task lighting
  • Truma user-friendly digital control panel with adjustable fan and water boost functions
  • NEW ‘Chesham’ soft furnishings with co-ordinating curtains and two scatter cushions
  • Conventional cushion construction with fully sprung knee rolled base cushions and square back rests
  • NEW ‘Hazelnut’ loose fit carpet
  • NEW Bailey ’Light Oak’ furniture finish
  • NEW Ambient lighting in front corners
  • USB sockets in directional spotlights
  • NEW Branded DAB radio with USB connection point & Bluetooth capability
  • Two-drawer front chest with slide out occasional table and soft close drawers
  • NEW Dual finish Italian design overhead curved locker doors with ‘canvas’ textured contrasting stripe and over-locker LED lighting
  • NEW Low level storage cupboard beneath front chest
  • Thetford hob with four gas burners
  • Dometic 103 litre refrigerator & 12 litre freezer
  • Branded 800 watt microwave oven
  • NEW Stainless steel round kitchen sink with concealed fixings, mixer tap and drainer
  • NEW Kitchen plate rack
  • Drop down hob cover worktop
  • NEW Wall mounted kitchen worktop upstand
  • Full width washroom mirror
  • White gloss shower cubicle with bi-fold partition door and integral lighting
  • Bespoke caravan bedding sets to co-ordinate with caravan soft furnishings (cost option)
View full screen gallery

Details

  • Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
  • Five part fully bonded exterior panel assembly system
  • Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
  • Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
  • Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
  • EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)
  • NEW High performance GRP skinned ‘Polar White’ and ‘Dove Grey’ Alu-Tech bodyshell
  • AL-KO one-piece galvanised steel chassis, braking system and running gear
  • Flush-fit front and rear impact resistant bumper with integral grab handles and step up a-frame fairing
  • Aero-dynamic & aesthetically enhanced rear bodyshell profile
  • NEW Design ‘Silver’ 14” TUV tested alloy wheels
  • Aerodynamically profiled double glazed Polyplastic opening vertical front skylight and windows throughout
  • Modern look Bailey branded front window with darker screen print
  • Vertical front skylight surround with integral task lighting
  • Remis pleasted flyscreen and blinds to vertical skylight and front windows
  • Remis cassette flyscreen and blinds to principal windows
  • Midi and mini Heki rooflights located throughout the habitation area
  • Hartal GRP skin two part large aperture exterior door with coat hook and Hartal pleated full length flyscreen
  • LED awning light with integral water management system
  • Easy access exterior storage locker
  • Centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
  • NEW ‘Phoenix+’ graphics scheme
  • NEW Bailey ’Light Oak’ furniture finish
  • NEW Dual finish Italian design overhead curved locker doors with ‘canvas’ textured contrasting stripe
  • NEW Ambient lighting in front corners
  • Premium quality, domestic style fixtures and fittings in polished chrome finish
  • ‘Nordic Stone’ finish freestanding table with dedicated storage
  • 2-drawer front chest with slide out occasional table and soft close drawers
  • NEW Low level storage cupboard beneath front chest
  • Slatted front bed make-up system on easy-glide track
  • Beech slat seat bases with sprung hinged tops for extra comfort and ease of access
  • Angled backrest and seat ventilation boards for enhanced heating efficiency
  • Conventional cushion construction with fully sprung knee rolled base cushions and square back rests featuring premium quality fabrics
  • NEW ‘Chesham’ soft furnishings with co-ordinating curtains and two scatter cushions
  • Integrated curtain pelmet
  • NEW Silver finish interior grab handle for ease of access in and out of the caravan
  • NEW ‘Hazelnut’ loose fit carpet including washroom carpet
  • Textured finish durable floor vinyl
  • Entrance door mat
  • Status 570 telescopic directional digital television aerial
  • Up to two TV stations with 230v, 12v and one aerial socket
  • NEW Branded DAB Radio with USB connection point and Bluetooth capability
  • Branded dual cone stereo speakers for superior sound quality
  • Beech slat bed bases with sprung hinged tops for extra comfort and ease of access
  • Fixed double beds with aluminium frames and gas strut assisted opening mechanism (model specific)
  • Superior foam fixed bed mattress construction (model specific)
  • Padded headboards in fixed beds (model specific)
  • ‘Nordic Stone’ kitchen worktop laminate
  • Drop down hob cover worktop in matching ‘Nordic Stone’ finish
  • NEW Wall mounted kitchen worktop upstand in ‘Nordic stone’ finish
  • NEW Stainless steel round kitchen sink with concealed fixings, mixer tap and drainer
  • NEW Kitchen plate rack
  • Dometic 103 litre refrigerator & 12 litre freezer with electronic ignition

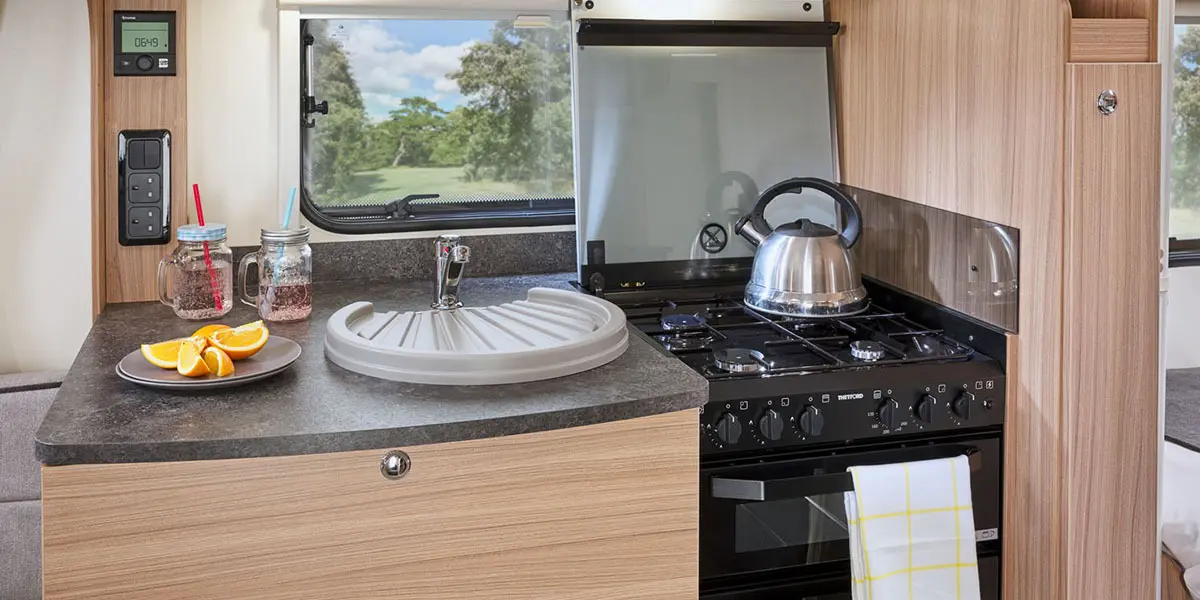

  • Thetford ‘K-Series’ combined oven, grill and hob with electronic ignition and flame failure device
  • Thetford hob with 4 gas burners
  • Branded 800 watt microwave oven
  • Solid domestic style washroom door with domestic metal handle
  • ‘Nordic Stone’ washroom worktop laminate
  • Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
  • White gloss shower cubicle with bi-fold partition door and integral lighting
  • Bathroom storage cupboard
  • Full width washroom mirror (model specific)
  • Washroom hand basin and mixer tab
  • Thetford C-260 cassette toilet with integrated header tank (model specific)
  • Built in Thetford C-260 cassette toilet with remote header tank (model specific)
  • 230v power inlet for mains hook-up
  • 12v internal lighting system including LED down-lighters and directional spotlights
  • 230v power supply with up to five interior sockets
  • Two USB sockets in directional spotlights
  • Centrally located under floor leisure battery storage locker
  • Domestic style consumer unit
  • Switch mode battery charger with 20 amp output
  • RCD/MCB protection for mains electric system
  • Pre-wiring for motor mover (retailer fit)
  • 25 metre mains connecting lead
  • Truma Combi 2 heating system, combined water and room heating with dual fuel 2kw gas and 1.8kw electric power sources
  • Truma user friendly digital control panel with adjustable fan and water boost functions
  • Propane/Butane 30mb gas regulator in gas locker compartment
  • Truma Ultraflow submersible pump
  • Outboard rigid pipe waste plumbing system
  • AL-KO AKS 3004 stabiliser
  • WSL individually laser balanced wheels fitted with ‘Security’ tyres and anti-tamper WSL safety bolts
  • Interior floor mounted spare wheel and tyre (steel wheel)
  • High security one key operation throughout
  • CRiS identity number anti tamper labels attached to windows and inside gas locker
  • Concealed security data chip within caravan construction
  • Smoke alarm
  • Carbon Monoxide Alarm
  • European Whole Vehicle Type Approved to be European Standard compliant and certified by the National Caravan Council
  • Supplied with a six-year transferable bodyshell integrity warranty and a three-year transferable manufacturers warranty*
  • Four-year transferable extension to bodyshell integrity warranty (making ten years in total) and/or three-year transferable extension to manufacturer’s warranty (making six years in total) available as cost options*
  • *Terms and conditions apply
  • AL-KO ATC trailer control system (factory fit)
  • Truma iNet system (retailer fit)
  • Bespoke caravan bedding sets to co-ordinate with caravan soft furnishings (model specific)
Range
Phoenix+
Model
650
Berths
5
Internal Length
5.841m / 19′2″
Shipping Length
7.369m / 24′2″
Overall Width
2.212m / 7′3″
Overall Height
2.624m / 8′7″
Internal Headroom
1.960m / 6′5″
Awning Size
1035cm
Tyre Sizes
185/R14C
MTPLM
1409kg
MRO
1244kg
Total User Payload
165kg

Bed Sizes:

Front Double
1.88m x 1.40m / 6'2'' x 4'7'' Measured from the widest point
Front N/S Single
1.81m x 0.64m / 5'11'' x 2'1'' Measured from the widest point
Front O/S Single
1.81m x 0.64m / 5'11'' x 2'1'' Measured from the widest point
Rear N/S Single
1.88m x 0.69m/6'2" x 2'3" Measured from the widest point
Rear O/S Fixed Bunks
1.86m x 0.66/6'1" x 2'2" Measured from the widest point

RECOMMENDED RETAIL PRICE £19,999

RRP as at 1st September 2020 (prices include VAT @20%). Please see below for important price information

Price Guarantee: These prices are guaranteed subject to you ordering your caravan from the earliest production availability and that you take delivery within 14 days of dispatch from the factory.

Retailer Delivery Charge. Your Bailey Retailer will make a charge of up to £565 to cover the cost of various additional services carried out prior to you taking possession of your new Bailey tourer. The main element of this charge will be the cost of transporting your tourer from the Bailey factory to your vending Retailer’s premises. Your Bailey Retailer can confirm the details of the additional services available prior to making your choice.

Optional Extras

Optional ExtraRRPKG
AL-KO ATC Trailer Control System (Factory Fit) £514.99 3.0kg
Truma iNet (Retailer Fit)£199150g
Bespoke caravan bedding set to co-ordinate with caravan soft furnishings (model specific)£249.99Up to 7.3kg
4-year extension to standard 6-year bodyshell integrity warranty (ten years in total)* inc IPT £265Nil
3-year extension to standard 3-year manufacturers warranty (six years in total)* inc IPT £439Nil

Optional Extras. Options pricing is only applicable on new leisure vehicle orders. Ask your supplying Retailer for more information.

*Terms and conditions apply to the warranty extension schemes.
