Autograph 81-5
OTR £93,999
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
Autograph 81-5
Berths
6
Designated Travelling Seats
5
Cab
Peugeot Cab (Graphite)
Engine
180bhp / 2179cc
Chassis
AL-KO AMC
Overall Body Length
8.134m / 26′8″
MTPLM
4500kg
MRO
3587kg
more info
Payload
913kg
OTR Price
£93,999
All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
Key Features
- Spacious wide-bodied 8-metre motorhome with front and rear lounges, featuring double drop-down beds above, suitable for up to 5 people
- Can be driven with a Category C1 license (MPTLM: 4500kg)
- Built on a Peugeot Boxer with a 2.2L, 180bhp engine and 8-speed automatic gearbox
- Large rear garage with double doors, heating supply and power sockets
- Large rear garage with double doors, ALDE radiator heating and power sockets
- L-shaped front lounge, with twin dedicated travel seats featuring ISOFIX, plus an additional Aguti convertible travel seat also featuring ISOFIX
- Front and rear electrically operated multi-position drop down double beds and mattresses
- Fully equipped kitchen with a Thetford 137L absorption tower fridge
- Central washroom with separate shower cubicle
- Rear U-Shaped lounge convertible into an additional double bed
- All-weather touring with Alu-Tech insulation and Alde radiator heating and hot water system (Grade III EN1646-I)
- Ready for off-grid adventures with a 200W Truma solar panel and twin underfloor 95 Ah AGM leisure batteries
i

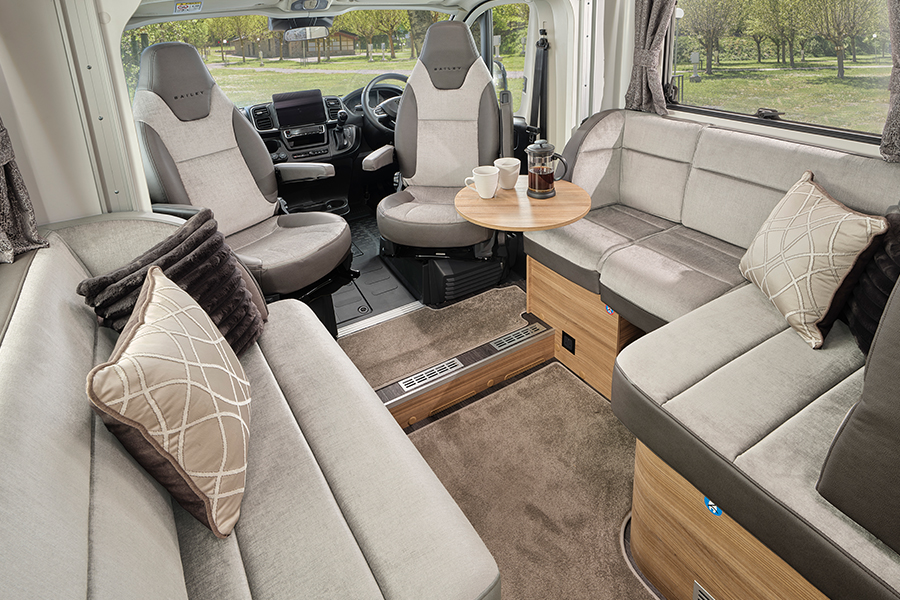

Front lounge with 5 travel seats
i

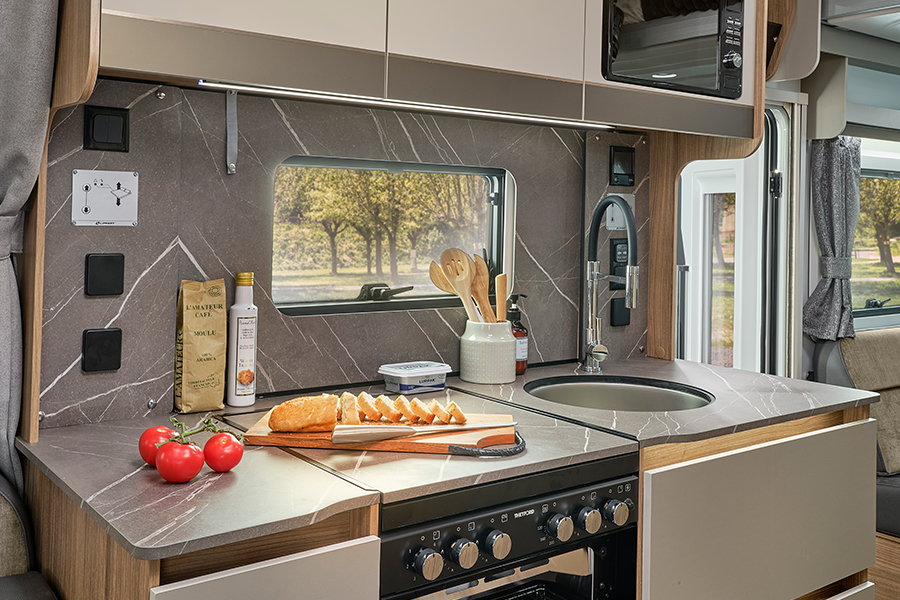

Flexible and reliable cooking options with the Thetford combined oven, grill and dual-fuel hob
i

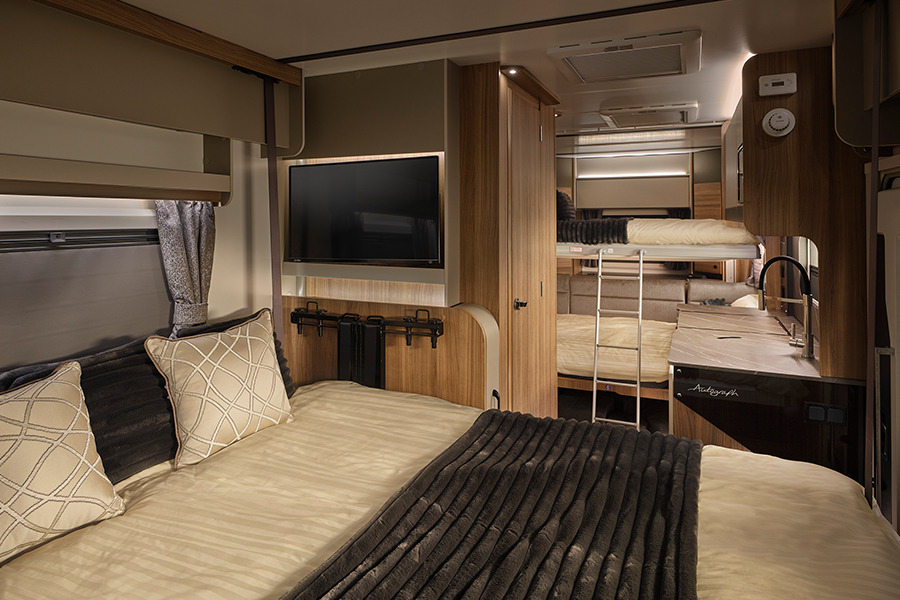

Two multi-position drop down double beds
i

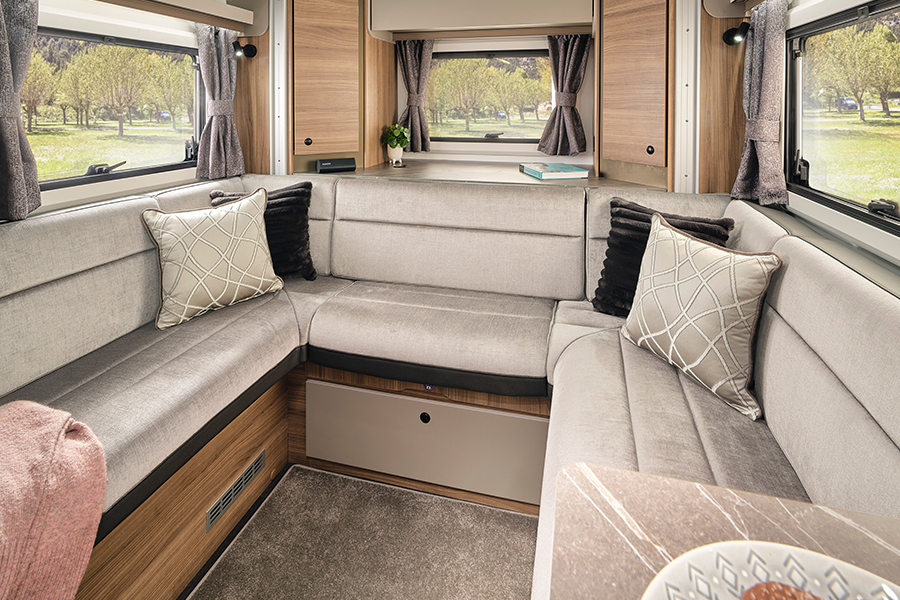

Rear lounge with ample storage
i

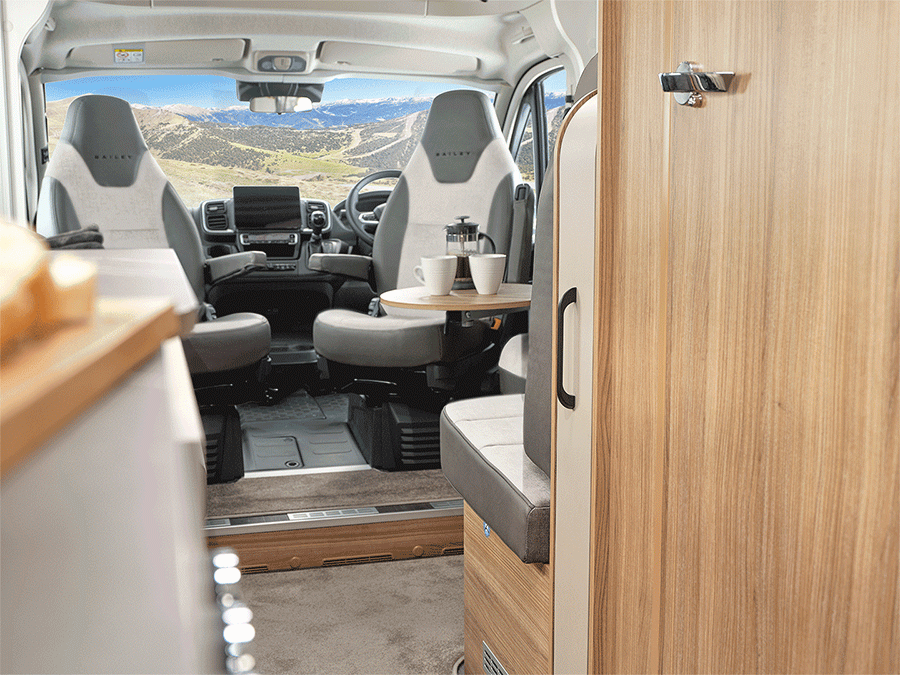

Occasional table storage accessible inside the van
i

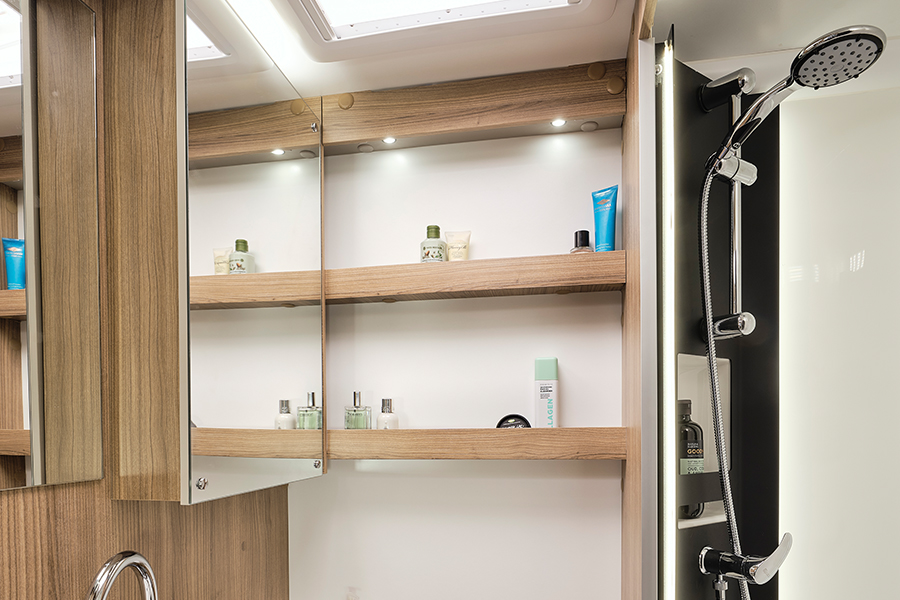

Fully equipped washroom with lined shower
Details
- Peugeot Boxer ‘Graphite’ cab with body-coloured bumpers and vehicle trim
- Peugeot 2.2 litre 180 bhp engine with 8-speed automatic gearbox
- In-vehicle infotainment system featuring a 10” touchscreen HD colour display, DAB radio, Apple Carplay/Android Auto, satellite navigation plus Bluetooth and USB connectivity
- Peugeot rearview reversing camera
- Extra wide Hartal habitation door with window, blind, waste bin, umbrella holder (umbrella not included) and pleated full-length door flyscreen
- Flushfit Polyplastic ‘Puima’ double glazed windows with integrated flyscreens and blinds throughout the habitation area
- Spacious rear double door storage garage with Alde radiator heating, 12v lighting plus 230v and 12v power sockets
- Bailey ‘Natural Oak’ and ‘Stone Grey’ furniture finishes
- Bailey ‘Natural Oak’ curved overhead locker doors with ‘Pearl Bronze’ detailing and positive door catches for secure storage in transit
- Premium quality fixtures and fittings in chrome and matt black finishes
- Standard ‘Mulberry’ soft furnishings with co-ordinating curtains and four large scatter cushions
- Optional ‘Jasmine’ soft furnishings with practical Aquaclean fabric, co-ordinating curtains and four large scatter cushions
- ‘Mocha’ premium ‘Stainfree’ section loose fit drop in carpets
- Pedestal swing out occasional table in ‘Natural Oak’ finish
- Thetford 137 litre absorption tower refrigerator with 15 litre freezer compartment
- Swan neck mixer tap with flexi head
- Pull-out kitchen unit with wire basket storage
- SONOS portable speaker with built in Alexa voice control
- Wireless charging pad with one USB and one USB C point
- Truma 200-watt lightweight flexible solar panel
- 2 x 95 Ah AGM leisure batteries in dedicated under floor storage locker
- AL-KO chassis mounted spare wheel carrier and steel spare wheel
- Peugeot Boxer ‘Graphite’ cab with body-coloured bumpers and vehicle trim
- Peugeot 2.2 litre 180 bhp engine with 8-speed automatic gearbox
- ‘Graphite’ Diamond cut style 16” alloy wheels with premium branded tyres
- Fully specified cab with automatic air conditioning, adaptive cruise control, electric windows, automatic headlights, heated wing mirrors and electronic parking brake
- In-vehicle infotainment system featuring a 10” touchscreen HD colour display, DAB radio, Apple Carplay/Android Auto, satellite navigation plus Bluetooth and USB connectivity
- Peugeot rearview reversing camera
- Windscreen and side window night blinds
- Fully adjustable upholstered driver and passenger Captain’s seats with twin upholstered armrests and integrated headrests
- Leather steering wheel and gear selector
- Wireless phone charger
- Two 12v sockets and USB connection points
- Full bodied ‘Dove Grey and ‘Glacier White’ GRP skinned Alu-Tech bodyshell
- Contrasting charcoal and bronze exterior graphics scheme with white resin badging
- Structural interlocking aluminium extrusion external framework with no external fixing points for additional strength and rigidity
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high-density polystyrene insulation and a GRP inner wall lining
- Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
- Strengthened floor panel with GRP underside protection
- EN-1646-1 Grade III classification for heating and thermal insulation, for all-year round usage, confirmed by cold chamber testing
- AL-KO low profile AMC Chassis prepared for optional towbar fitment (Retailer fit)
- Extra wide Hartal habitation door with window, blind, waste bin, umbrella holder (umbrella not included) and pleated full-length door flyscreen
- Illuminated grab handle in entrance way for ease of access and exit
- LED awning light above external door
- Flushfit Polyplastic ‘Puima’ double glazed windows with integrated flyscreens and blinds throughout the habitation area
- Double glazed opening sky view over cab window with blind and internal surround
- Midi and mini Heki rooflights located throughout the habitation area
- Thule Omnistor wind-out awning
- Hartal exterior storage locker doors featuring double seals, heavy duty handles, compression locks and retaining clips
- Spacious rear garage
- Exterior access doors on either side of vehicle
- Fully lined storage space with carpeted sidewalls and a durable vinyl floor
- Alde radiator heating
- 230v and 12v power socket
- Internal 12v strip light
- Up to four floor mounted lashing rings
- Single piece rear impact resistant bumper with vertical pillar mouldings and integral light clusters
- Fixing points for rear mounted cycle rack
- Bailey ‘Natural Oak’ and ‘Stone Grey’ furniture finishes
- Bailey ‘Natural Oak’ curved overhead locker doors with ‘Pearl Bronze’ detailing and positive door catches for secure storage in transit
- Premium quality fixtures and fittings in chrome and matt black finishes
- Standard ‘Mulberry’ soft furnishings with co-ordinating curtains and four large scatter cushions
- Optional ‘Jasmine’ soft furnishings with practical Aquaclean fabric, co-ordinating curtains and four large scatter cushions
- ‘Mocha’ premium ‘Stainfree’ section loose fit drop in carpets
- ‘Dark Oak’ finish durable floor vinyl
- Front lounge with twin dedicated rear travel seats, including 3-point seatbelts and up to three ISOFIX fitting (model specific)
- Additional Aguti convertible travel seat incorporating ISOFIX with dedicated travel seat cushions (model specific)
- Freestanding dining table in ‘Natural Oak’ finish with dedicated storage
- Pedestal swing out occasional table in ‘Natural Oak’ finish
- Status 570 telescopic directional digital television aerial
- Up to two TV stations with 230v, 12v and aerial sockets
- Wall mounted TV bracket with space for optional 32” screen (model specific)
- SONOS portable speaker with built in Alexa voice control
- Pre-wired for optional roof mounted Avtex mobile wi-fi system (Retailer fit)
- ‘Basalt’ kitchen worktop laminate finish
- Drop down hob cover in ‘Basalt’ finish
- Undermounted stainless steel round kitchen sink with concealed fixings, swan neck mixer tap with flexi head, integrated worktop infill chopping board, washing up bowl and drainer
- Kitchen splashback in ‘Basalt’ finish
- Bailey ‘Natural Oak’ and ‘Stone Grey’ kitchen units featuring heavy duty drawers and cupboards with positive door catches for secure storage in transit
- Pull-out kitchen unit with wire basket storage
- Thetford 137 litre absorption tower refrigerator with 15 litre freezer compartment
- Thetford combined oven, grill and hob with electronic ignition and flame failure device
- Thetford dual-fuel hob with electric hotplate and three gas burners
- Branded flatbed microwave oven with digital controls
- Bailey ‘Natural Oak’ and ‘Stone Grey’ fixed bed bases with integral storage underneath (model specific)
- ‘Basalt’ cabinet surfaces (model specific)
- Fixed bed sprung beech slat bed bases for enhanced comfort with adjustable headrests (model specific)
- Foam fixed bed mattresses with soft fabric covering (model specific)
- Full width back lit soft touch fabric headboard (model specific)
- Electrically operated multi- position drop down double beds with foam mattress (model specific)
- Bailey ‘Natural Oak’ and ‘Stone Grey’ bathroom furniture with ‘Basalt’ work surfaces, matching splash back and integral storage
- Wall mounted vanity cupboard with mirrored door (model specific)
- Double door wardrobe (model specific)
- Countertop mounted washroom hand basin with swan neck mixer tap
- Onboard shower with fitted shower tray including twin drainage points, Ecocamel shower head, riser bar and combination mixer tap
- Gloss white shower cubicle with bi-fold partition door and illuminated shower plinth
- Up to five wall mounted towel hooks
- Mini Heki rooflight with night blind and drop-down towel rail
- Thetford 12v electric flush toilet with removable cassette on wheels
- Electrical control unit with simple controls for heating and hot water systems
- 230v power inlet for mains hook up with 25 metre mains connecting lead
- Exterior 230v socket with integrated aerial jack outlet
- 230v power supply with a minimum of six interior sockets, four USB and two USB C points
- Wireless charging pad with one USB and one USB C point
- Truma 200-watt lightweight flexible solar panel
- 2 x 95 Ah AGM leisure batteries in dedicated under floor storage locker
- Switch mode battery charger with 20amp output
- 12v ambient and task light fittings throughout living area
- Directional spotlight reading lights with integral USB sockets in cab
- Low level lighting highlighting entrance step
- Alde Hydronic Compact 3020 programmable radiator heating system with combined water heating
- Dual fuel 6.4kw gas and up to 3.15kw electric power sources
- Alde touch screen user-friendly control panel with back up battery for uninterrupted programming
- Washroom panel radiator
- Provision for 2 x 13kg gas bottles with fitted butane/propane 30mg regulator
- Exterior gas BBQ point
- 115 litre inboard freshwater tank with frost heater and level sensor
- 95 litre external wastewater tank with level sensor
- Whale electric water pump
- Pressurised hot and cold freshwater system and self-priming pump
- Rigid pipe wastewater plumbing system
- Crash tested vehicle design featuring reinforced floors and strengthened furniture to enhance passenger safety
- ABS (Anti-lock braking system), ESP (Electronic Stability Programme), TPMS (Tyre Pressure Monitoring System
- Intelligent speed assist, intelligent lane assist and autonomous emergency braking
- Twin driver and front passenger airbags
- Engine immobiliser
- Remote central locking for cab and habitation door
- AL-KO chassis mounted spare wheel carrier and steel spare wheel
- Smoke alarm and carbon monoxide alarm
- European Whole Vehicle Type Approval ensuring compliance with strict health and safety regulations
- 2-year unlimited mileage base vehicle warranty and 1-year European breakdown cover, provided by Peugeot.
- All enquiries relating to this warranty should be directed to Peugeot
- 6-year body integrity warranty provided by Bailey
- Terms and conditions apply please refer to www.baileyofbristol.co.uk/warranties-servicing for details
- 3-year manufacturers’ warranty provided by Bailey
- Terms and conditions apply please refer to www.baileyofbristol.co.uk/warranties-servicing for details
- 4-year insurance backed extension to body integrity warranty (making 10 years in total) also available as a cost option
- Terms and conditions apply please refer to www.baileyofbristol.co.uk/warranties-servicing for details
- 3-year insurance backed extension to manufacturers’ warranty (making 6 years in total) also available as a cost option
- Terms and conditions apply; please refer to www.baileyofbristol.co.uk/warranties-servicing for details
- Avtex mobile wi-fi system (Retailer fit)
- Optional ‘Jasmine’ soft furnishings with practical Aquaclean fabric, co-ordinating curtains and four large scatter cushions
Range
Autograph
Model
81-5
Designated Travelling Seats
5
Berths
6
Cab
Peugeot Cab (Graphite)
Engine
180bhp / 2179cc
Chassis
AL-KO AMC
Roof Profile
Low Profile
Overall Body Length
8.134m / 26′8″
Max Width Vehicle with Mirrors Extended
2.765m / 9′1″
Max Width Vehicle with Mirrors Folded
2.451m / 8′1″
Overall Height
2.900m / 9′6″
Tyre Sizes
225/75R 16CP
MTPLM
4500kg
MRO
3587kg
Total User Payload
913kg
Thermal Insulation Grade
3
Gas Locker Capacity
2 x 13kg
Fresh Water Tank
100 litres litres
Waste Water Tank
100 litres litres
Bed Sizes:
Front Drop Down Double
1.840m x 1.310m (6ft x 4ft 4in) Measured from the widest point
Rear Double
2.090m x 1.390m (6ft 10in x 4ft 7in) Measured from the widest point
Rear Drop Down Double
1.840m x 1.310m (6ft x 4ft 4in) Measured from the widest point
RECOMMENDED RETAIL PRICE: £93,999
Recommended Retail Price as at 11th September 2025 (prices include VAT @ 20%)
This on the road price includes a cost of £1,800 which comprises a 12-month road fund licence, first registration fee, a set of number plates and delivery to a Retailer in Great Britain.
Price Guarantee: These prices are guaranteed subject to you ordering your motorhome from the earliest production availability and that you take delivery within 14 days of dispatch from the factory.
| Optional Extras | RRP | Weight Allowance |
|---|---|---|
| Optional 'Jasmine' alternative upholstery with Aquaclean fabric | £349 | Nil |
| 4-year extension to standard 6-year bodyshell integrity warranty (making ten years in total)* | From £549 | Nil |
| 3-year extension to standard 3-year manufacturers warranty (making six years in total)* | From £999 | Nil |
Optional Extras: Optional extra prices are only applicable on new motorhome orders
*Terms and conditions apply to warranty extension schemes. Please ask your supplying Bailey Retailer for more information
