Autograph (white)

Autograph 79-4I

OTR £61,899

Autograph 79-4I

Berths
4
Designated Travelling Seats
4
Cab
Peugeot Cab (Graphite)
Engine
165bhp / 1997cc
Chassis
AL-KO AMC
Overall Body Length
7.931m / 26′0″
MTPLM
3850kg
MRO
3233kg more info
Payload
617kg
OTR Price
£61,899

All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.

Key Features

  • Peugeot Sat Nav system
  • NEW Dometic reversing camera
  • NEW diamond cut style ‘Graphite’ 16” alloy wheels
  • Through-boot easy access large exterior storage locker
  • Ergonomically shaped rear travel seats
  • NEW fully adjustable driver and passenger seats with twin upholstered armrests
  • NEW ‘Cadet Grey’ split section loose fit drop in carpets

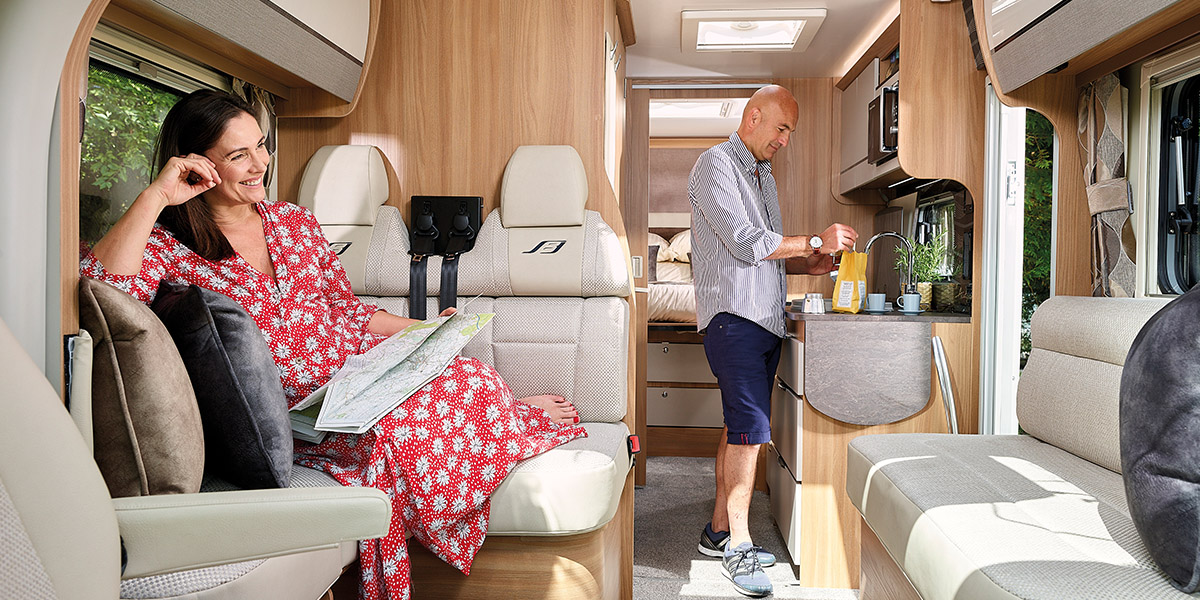

  • NEW standard ‘Farringdon’ soft furnishings
  • NEW optional ‘Portobello’ soft furnishings (cost option)

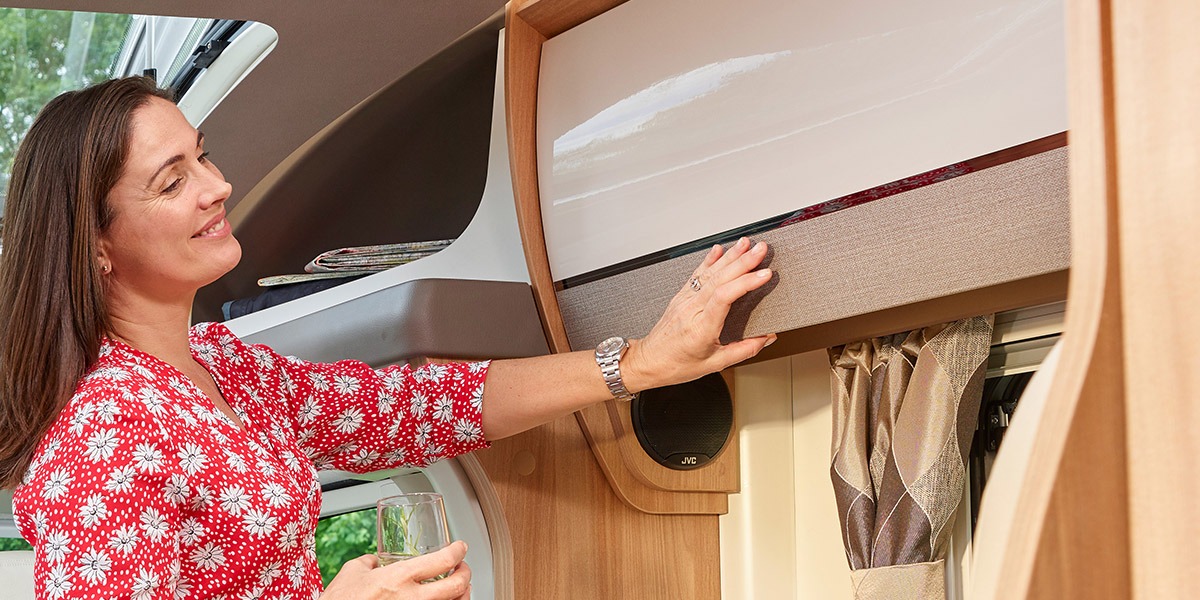

  • NEW dual finish ʻCashmereʼ gloss Italian design overhead curved locker doors
  • NEW high level storage pockets
  • Alde touch screen user-friendly control panel
  • NEW feature control panel with USB socket
  • NEW Dometic 10-series 153 litre electronic fridge freezer with universal handed door mechanism
  • NEW branded Perspex kitchen splashback with chrome detailing
  • Drop down kitchen worktop extension

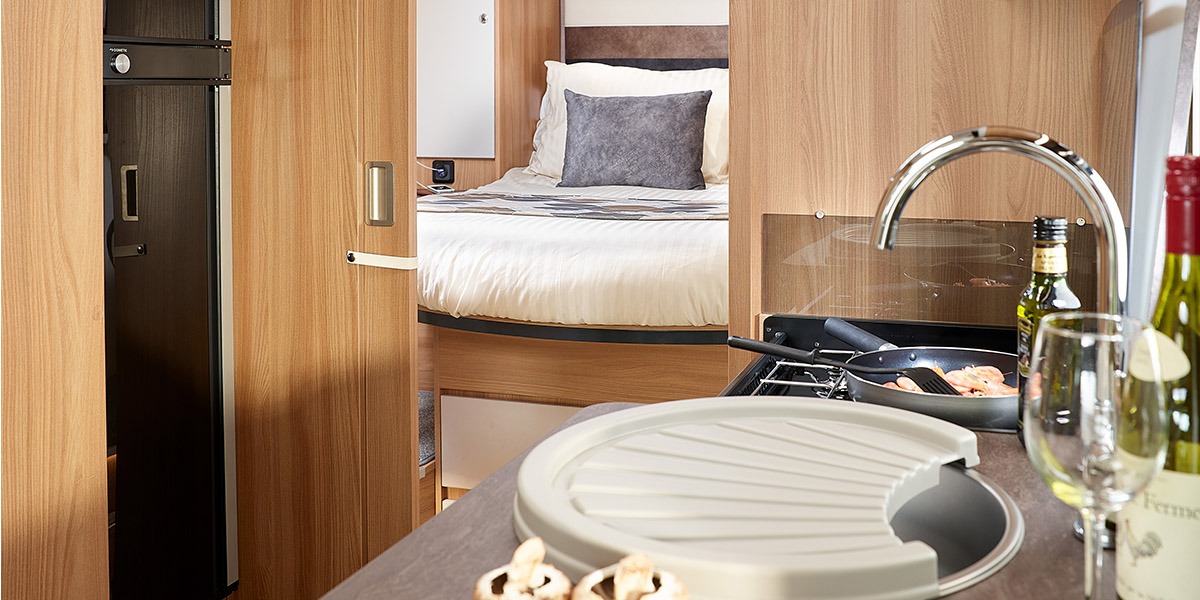

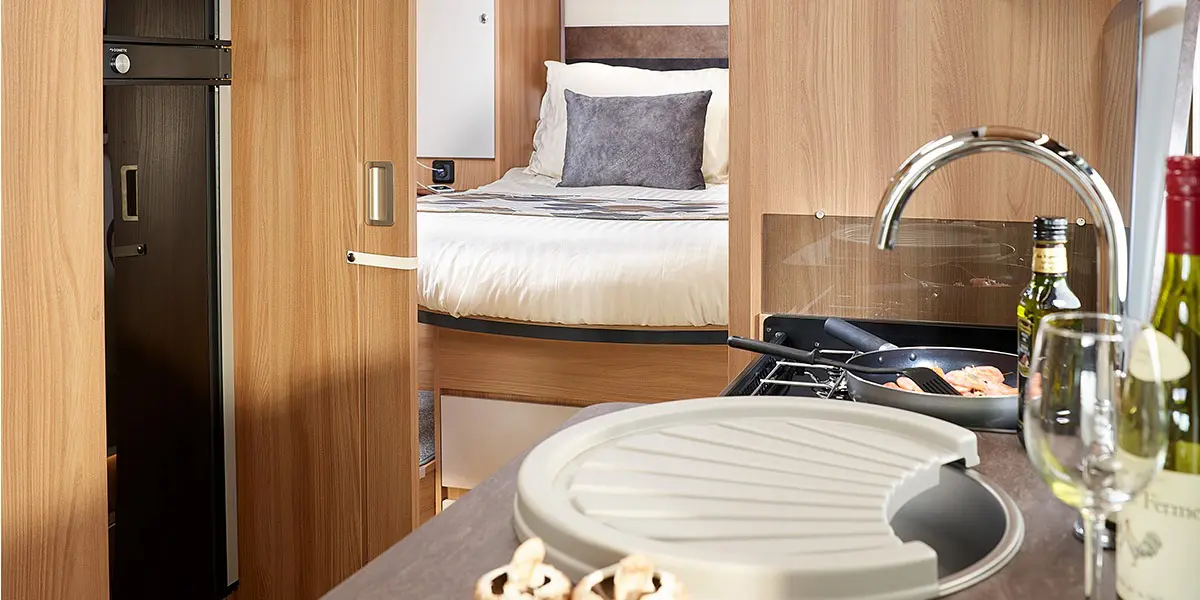

  • NEW stainless steel round kitchen sink with concealed fixings
  • NEW Thetford K-Series combined oven, grill and hob

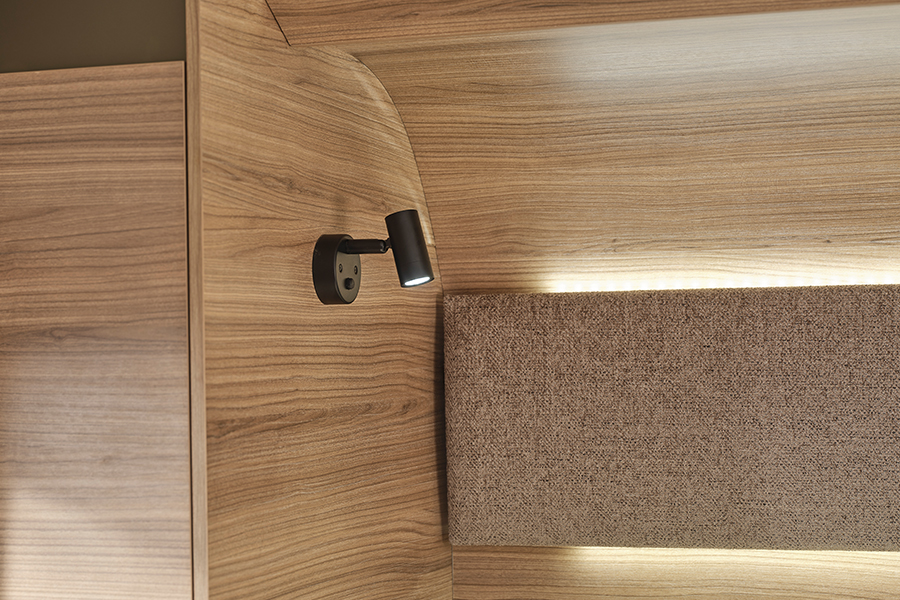

  • NEW 12v directional spotlights with integral USB sockets in rear bedroom
  • NEW full wall headboard
  • ‘Honeycore’ foam fixed bed mattress construction with stylish fabric covering
  • Bespoke motorhome bedding sets (cost option)

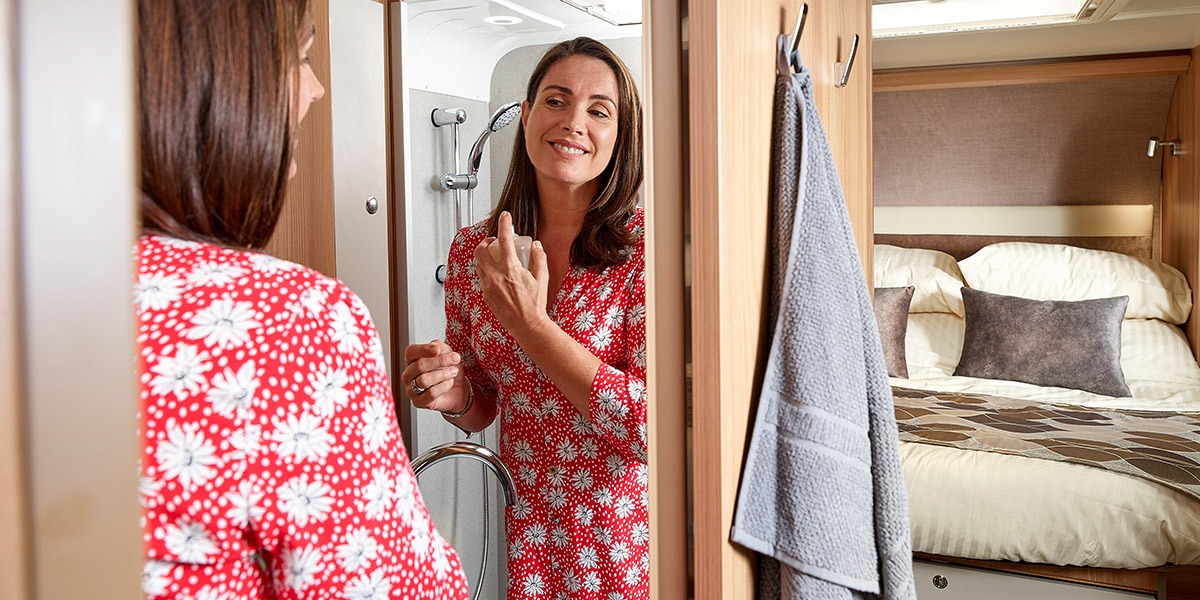

  • ‘Granite Stone’ finish lined shower cubicle with bi-fold partition door and integral lighting
View full screen gallery

Details

  • Peugeot fully compliant Euro 6.2 Boxer Cab supplied with a 3-year/100,000 mile warranty and 36 months Peugeot European assist cover
  • Peugeot 2.2 Blue HDi (High Pressure Direct Injection) 165bhp engine with 6-speed manual gear box
  • NEW ‘Graphite’ cab with colour coded bumpers and door handles
  • NEW diamond cut style ‘Graphite’ 16” alloy wheels (except 81-6 that has ‘Silver’ alloy wheels) with premium branded tyres with tyre pressure sensor
  • NEW LED daytime running lights
  • Fully specified cab with cruise control, air conditioning, driver and front passenger airbags, electric cab windows and heated wing mirrors
  • Remote central locking for cab and habitation door
  • Battery isolator
  • Variable power steering
  • Electronic Stability Program (ESP)
  • Anti-lock braking system (ABS)
  • Engine immobiliser
  • Concertina windscreen and side window blinds
  • DAB Radio with Bluetooth connectivity and 2 door speakers
  • Two 12v sockets and USB connection point in storage locker
  • Twin cup holders
  • Peugeot Sat Nav sytem
  • NEW Dometic reversing camera linked to Peugeot head unit
  • NEW high level storage pockets
  • NEW fully adjustable upholstered driver and passenger Captain’s seats with twin upholstered armrests and integrated headrests
  • Structural interlocking aluminium extrusion external framework with no external fixing points for additional strength and rigidity
  • Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
  • Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
  • Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
  • Strengthened floor panel with GRP underside protection
  • BS EN-1646-1 Grade III classification for heating and thermal insulation
  • High performance GRP skinned ‘Dove Grey’ and ‘Glacier White’ Alu-Tech bodyshell
  • NEW AL-KO low profile AMC Chassis
  • AL-KO AMC Chassis prepared for towbar fitment
  • NEW aero-dynamic over cab profile

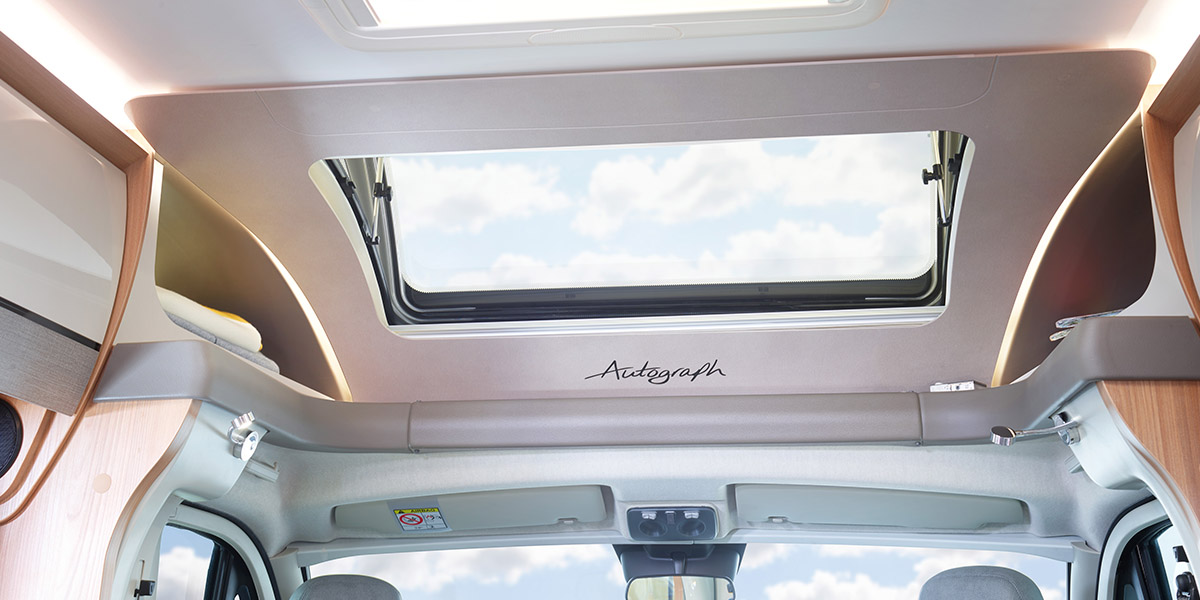

  • Double glazed opening sky view over cab window with blind and NEW internal surround (model specific)
  • Aerodynamically profiled double glazed Polyplastic opening windows throughout
  • Pleated flyscreens and blinds to all principal windows
  • Midi and mini Heki rooflights located throughout the habitation area
  • NEW rear bumper and light pillars with LED road lights
  • NEW rear sequential indicators
  • Fixing points for rear mounted cycle rack
  • NEW Thule Omnistor wind-out awning
  • Dometic slim line flush fit habitation door with window, blind and bin plus a gas-strut assisted mechanism for smooth operation and Dometic pleated full length door flyscreen
  • NEW door step with non-slip mat
  • NEW Hartal exterior doors featuring flush fit double seals, heavy duty handles, compression locks and retaining clips.
  • Centrally mounted exterior gas locker compartment

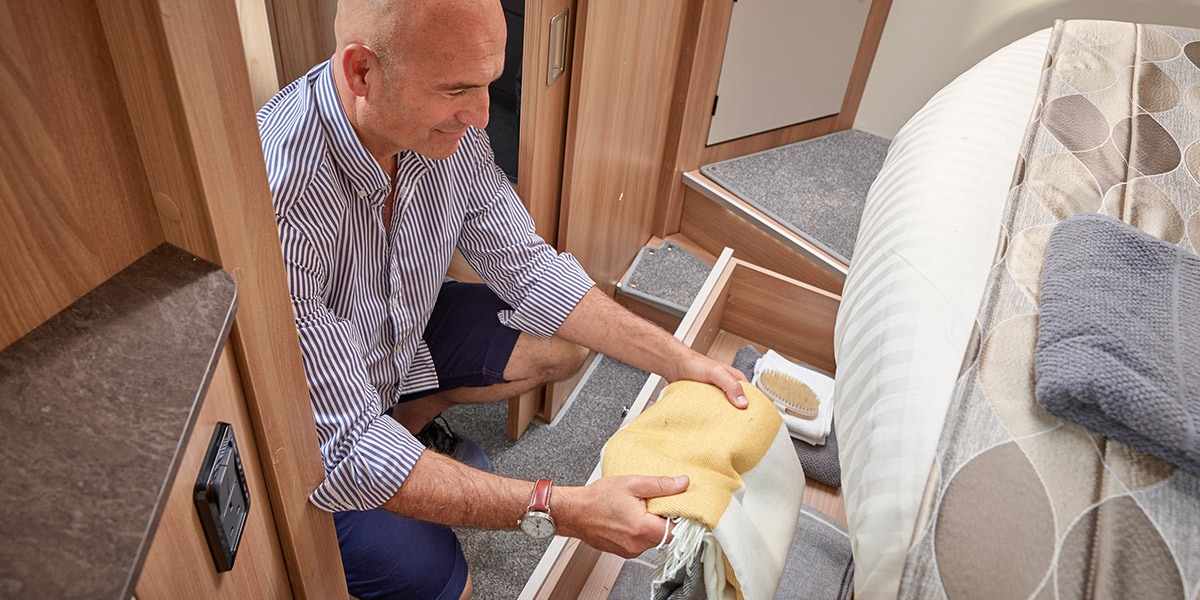

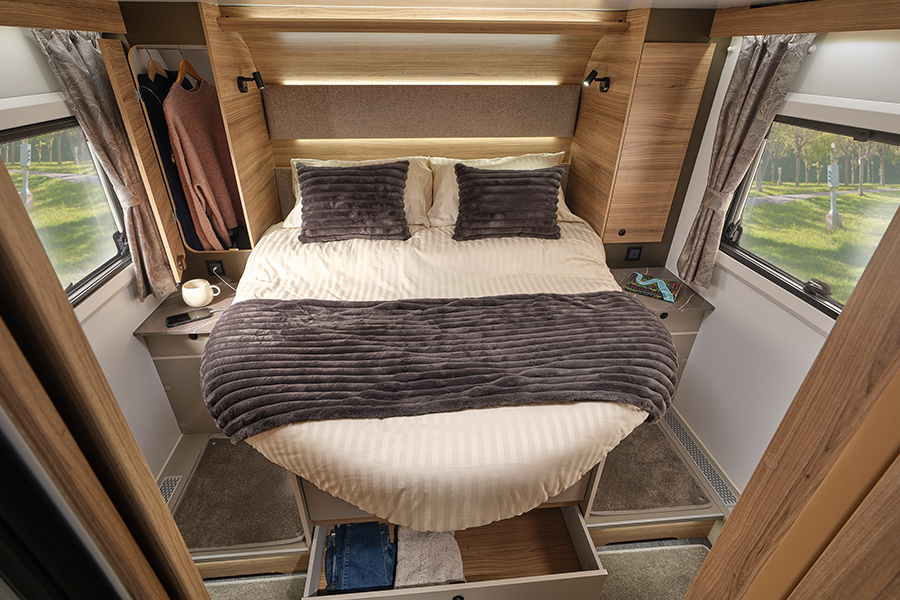

  • Underbed storage area (model specific)
  • Through-boot easy access large exterior storage on all end-lounge and end-bedroom models
  • NEW co-ordinating graphics scheme
  • Bailey ‘Mendip Ash’ furniture finish
  • NEW Dual finish ‘Cashmere’ gloss Italian design overhead curved locker doors with ‘Grey’ textured contrasting stripe
  • Premium quality fixtures and fittings in chrome finish
  • Structural locker dividers with greater load bearing capacity

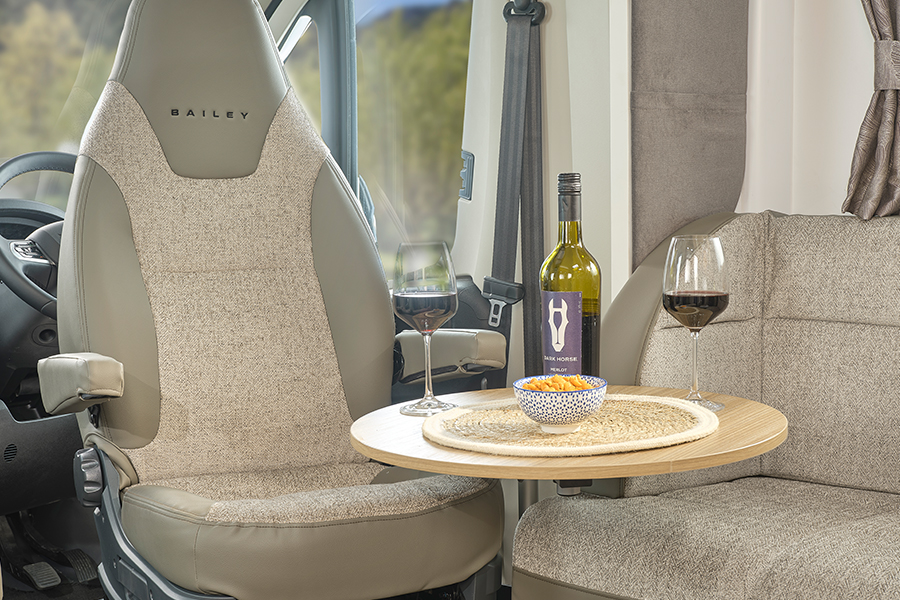

  • NEW ‘Slate Grey’ marble finish freestanding table with dedicated storage (model specific)
  • NEW ‘Slate Grey’ marble finish wall mounted table with dedicated storage (model specific)
  • Slide out bed boxes for easy bed make up (model specific)
  • Drop in tables for easy bed make up (model specific)
  • Drop down flaps on front bed box fascias (model specific)
  • NEW single raised floor for either front or rear lounges
  • NEW domestic style sofa seating featuring premium quality fabrics and sprung seat bases for enhanced comfort
  • NEW curved corner back rests with removable head rests (model specific)
  • NEW upholstered bulkhead in front lounges (model specific)
  • NEW standard ‘Farringdon’ soft furnishings with fully lined co-ordinating curtains and four large square scatter cushions
  • NEW optional ‘Portobello’ soft furnishings with fully lined co-ordinating curtains and four large square scatter cushions
  • NEW pouches with integrated speakers in rear lounges (model specific)
  • NEW illuminated entrance grab handle for ease of access in and out of the motorhome
  • NEW ‘Cadet Grey’ split section loose fit drop in carpets
  • Textured finish durable floor vinyl
  • Status 550 telescopic directional digital television aerial
  • Vision Plus satellite connection provision
  • Pre-wired for satellite (retailer fit)

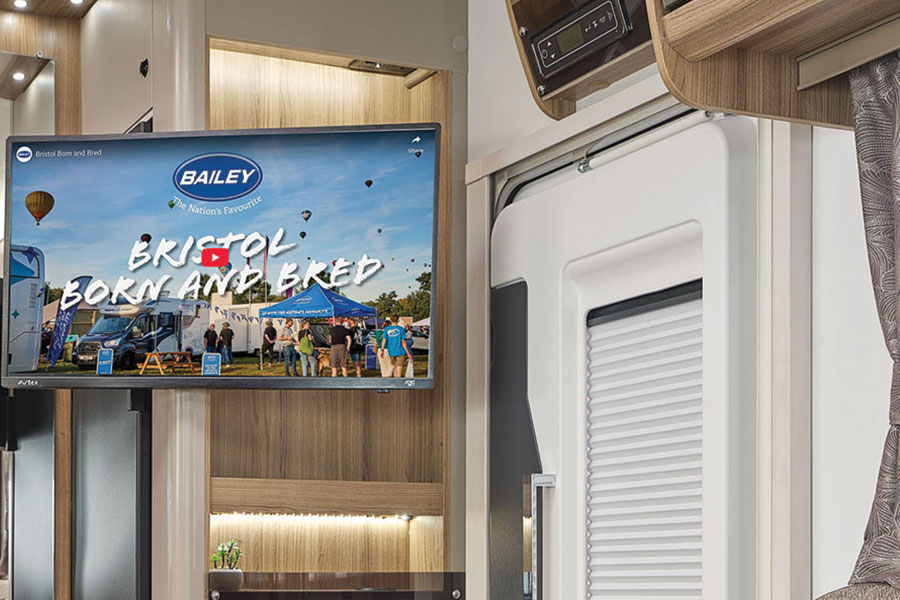

  • NEW TV stations with 230v, 12v and aerial sockets in front and rear (model specific)
  • Swivel and tilt TV bracket (model specific)
  • NEW two front and two rear speakers (model specific)
  • Fixed single and double beds with aluminium frames and gas strut assisted opening mechanism (model specific)
  • Deep-fill bed boxes with enhanced storage capacity (mode specific)
  • Ceiling mounted mechanically operated Alu-Line transverse drop down double bed with sprung base (model specific)
  • ‘Honeycore’ foam fixed bed mattress construction and stylish fabric covering (model specific)
  • Sprung beech bed box tops for additional comfort
  • NEW full wall headboard (model specific)
  • NEW ‘Slate Grey’ marble finish kitchen worktop laminate
  • NEW ‘Cashmere’ satin finish kitchen drawer fascias with soft-close drawers and handles
  • Domestic standard kitchen units featuring durable worktop surfaces and heavy duty drawers with positive catches
  • NEW Drop down hob cover worktop in matching ‘Slate Grey’ marble finish
  • Drop down kitchen worktop extension (model specific)
  • NEW Branded Perspex kitchen splashback with chrome detailing
  • Splash proof retractable roller blinds for kitchen window
  • Kitchen glass splashguard (model specific)
  • NEW stainless steel round kitchen sink with concealed fixings, swan-neck mixer tap, washing up bowl and drainer
  • NEW Dometic 10 series 153 litre electronic fridge freezer with universal handed door mechanism (model specific)
  • NEW Dometic 134 litre tower refrigerator (model specific)
  • NEW Thetford ‘K-Series’ combined oven, grill and hob with electronic ignition and flame failure device
  • Thetford dual-fuel hob with electric hotplate and 3 gas burners
  • Branded 800 watt microwave oven
  • NEW ‘Slate Grey’ marble finish washroom worktop laminate
  • Satin finish locker doors and vanity units in washroom
  • ‘Granite Stone’ finish lined shower cubicle with bi-fold partition door and integral lighting
  • Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
  • Ceiling mounted pull down hanging rail on shower hood
  • NEW countertop inset washroom hand basin with ceramic ball mixer tap
  • Thetford 12v electric flush toilet with removable cassette on wheels
  • 230v power inlet for mains hook-up
  • Truma 100 watt solar panel
  • Exterior 230v socket
  • Branded 110 ampere/hour premium leisure battery
  • Dedicated under floor leisure battery storage locker
  • Switch mode battery charger with 20 amp output
  • RCD/MCB protection for mains electric system
  • 230v power supply with up to six interior sockets
  • 12v ambient and task light fittings throughout
  • NEW twin flexible reading lights with integral USB sockets
  • NEW 12v directional spotlights with integral USB sockets in rear bedrooms and rear lounges (model specific)
  • NEW 12v spotlights in rear lounges (model specific)
  • NEW feature control panel with USB socket
  • NEW floor lighting to highlight step
  • Additional ambient over locker lighting
  • Additional low level task lighting
  • 25 metre mains connecting lead
  • Alde Hydronic Compact 3020 programmable radiator heating system with combined water heating
    • Touch screen user-friendly control panel
    • Dual fuel 3.4 Kw gas and 3 Kw electric power sources
    • Programmable daily timer
    • Panel radiator in washroom
    • Panel radiator in living area (model specific)
  • 95 litre external insulated fresh water tank with frost heater, baffles and level sensor
  • 95 litre external waste water tank with baffles and level sensor
  • Propane/Butane en-route gas 30mb regulator mounted in gas locker compartment
  • Whale Aqua smart II on-board water pump with Aquasource ‘lay flat’ filling pipe
  • Pressurised hot and cold fresh water system and self-priming pump
  • Rigid pipe waste plumbing system
  • Exterior gas BBQ point
  • Crash tested vehicle design featuring reinforced floors and strengthened furniture to enhance passenger safety
  • AL-KO outriggers fitted to AMC Chassis for enhanced floor strength
  • NEW ‘Fix and Go’ tyre repair kit
  • Ergonomically shaped rear travel seats (model specific)
  • Steel frame seat base supports for all travelling seats (model specific)
  • Steel framed structural bulkhead to support rear-facing designated travelling seats (model specific)
  • Smoke alarm and carbon monoxide alarm
  • European Whole Vehicle Type Approval
  • Supplied with a 6-year transferable bodyshell integrity warranty and a 3-year transferable manufacturers warranty*
  • 4-year transferable extension to bodyshell integrity warranty (making 10 years in total) and/or 3-year transferable extension to manufacturer’s warranty (making 6 years in total) available as cost options*
  • *Terms and conditions apply. Please visit baileyofbristol.co.uk/warranties-servicing for more information

• NEW optional ‘Portobello’ soft furnishings

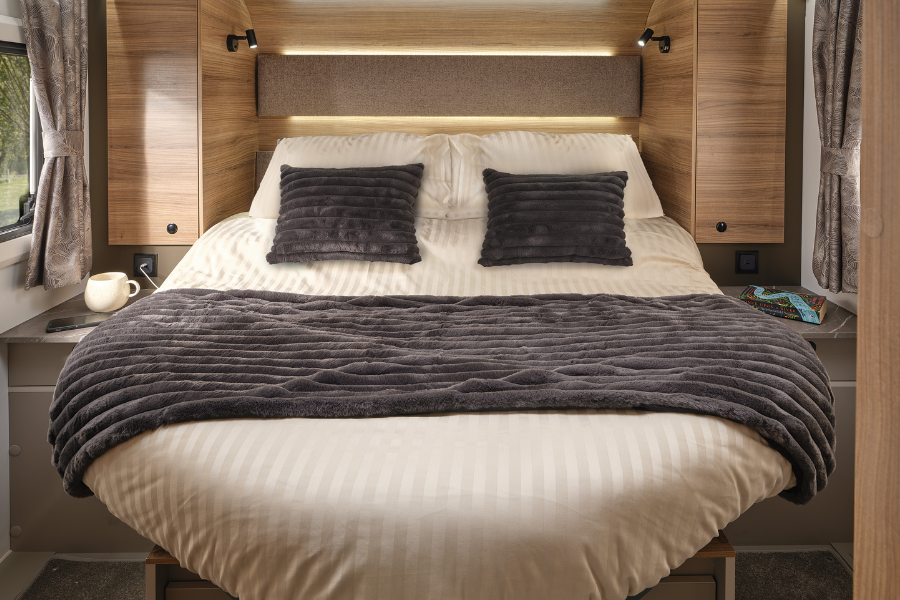

• Bespoke motorhome bedding sets to co-ordinate with soft furnishings (model specific)
• AL-KO chassis mounted spare wheel carrier and spare wheel (steel spare wheel)

Range
Autograph
Model
79-4I
Designated Travelling Seats
4
Berths
4
Cab
Peugeot Cab (Graphite)
Engine
165bhp / 1997cc
Chassis
AL-KO AMC
Roof Profile
Low Profile
Overall Body Length
7.931m / 26′0″
Overall Cab Width (mirrors folded)
2.489m / 8′2″
Overall Habitation Width (inc marker lights)
2.422m / 7′11″
Overall Height
2.710m / 8′11″
Fitted Awning Length
4.5m
Tyre Sizes
225 / 75R 16CP
MTPLM
3850kg
MRO
3233kg
Total User Payload
617kg
Max Recommended Braked Trailer Weight
2000kg
Thermal Insulation Grade
3
Gross Train Weight
5500kg
Gas Locker Capacity
2 x 6kg
Fresh Water Tank
95 litres
Waste Water Tank
93.5 litres

Bed Sizes:

Front Double
2.17m x 1.42m (7'2" x 4'8") Measured from the widest point
Rear Fixed Double
1.87m 1.45m (6'2" x 4'9") Measured from the widest point

RECOMMENDED OTR PRICE £61,899

OTR as at 1st September 2020 (prices include VAT @20%) Please see below for important price information

On the road (OTR) price includes a cost of £270 for a 12-month road fund licence (new price effective 12/03/20) as well as an additional cost of £1,146 to cover delivery to a Retailer in Great Britain, number plates, first registration fee and VAT at 20%.

Price Guarantee: These prices are guaranteed subject to you ordering your motorhome from the earliest production availability and that you take delivery within 14 days of dispatch from the factory.

Optional ExtrasWeight AllowanceRRP
'Portobello' alternative upholstery optionNil £225
Bespoke motorhome bedding set to co-ordinate with motorhome soft furnishings (model specific) up to 7.3kg From £229.99
AL-KO chassis mounted spare wheel carrier and spare wheel (steel spare wheel)29kg£375
4-year extension to standard 6-year bodyshell integrity warranty (ten years in total)* inc IPTNil£265
3-year extension to standard 3-year manufacturers warranty (six years in total)* inc IPTNil£849

Optional Extras: Options pricing only applicable on new motorhome orders. Please note that where an option is identified as model specific this means that it is only available on selected models within a range. Please ask your supplying Retailer for more information.

**Terms & Conditions apply to the warranty extension schemes.
