Retreat Sycamore
Berths
6
Axle
Twin
Shipping Length
8.957m / 29′5″
Internal Length
7.292m / 23′11″
Overall Width
2.480m / 8′2″
MTPLM
2287kg
MRO
2094kg
more info
Payload
193kg
All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.
Key Features
- Open plan living and dining room with wrap-around sofa in front lounge
- Dual fuel hob including an electric hotplate
- Stainless steel 700 watt microwave oven
- Dometic 117 litre fridge freezer
- Large circular shower cubicle
- Linen basket and heated towel rails
- Luxury end bathroom suites containing sprung mattress double bed
- Dedicated L-shaped side dinette with fixed table (which converts in to a bed at night)
View full screen gallery
![Remis pleated flyscreen and sunblinds to all caravan windows]()
![Full size Heki II tilting sunroofs over front saloon and kitchen]()
![Sycamore kitchen with high gloss worktop laminate]()
![Sycamore bedroom]()
![Sycamore dedicated L-Shaped side dinette with fixed table that converts into a bed]()
![Washroom with fully lined circular shower cubicle with curved door]()
i

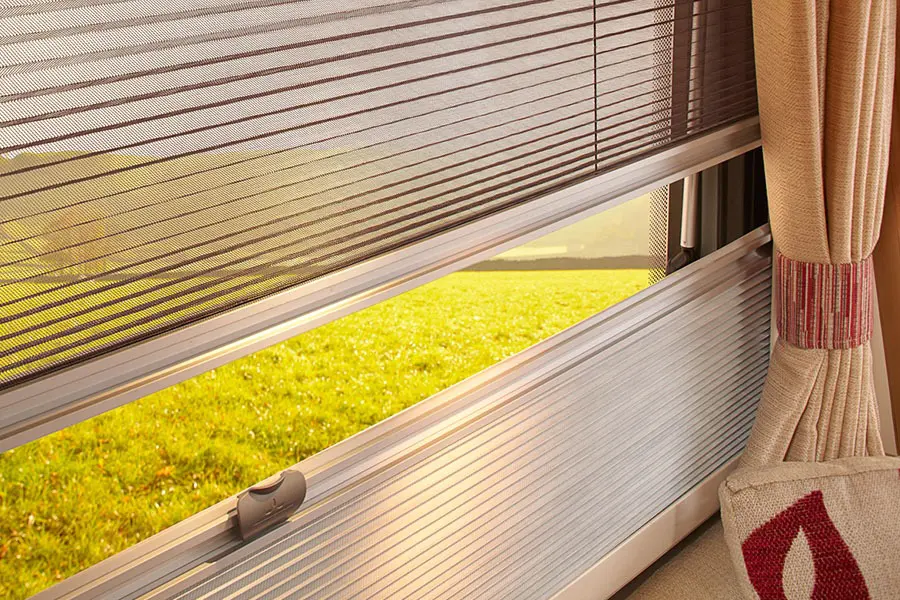

Remis pleated flyscreen and sunblinds to all caravan windows
i

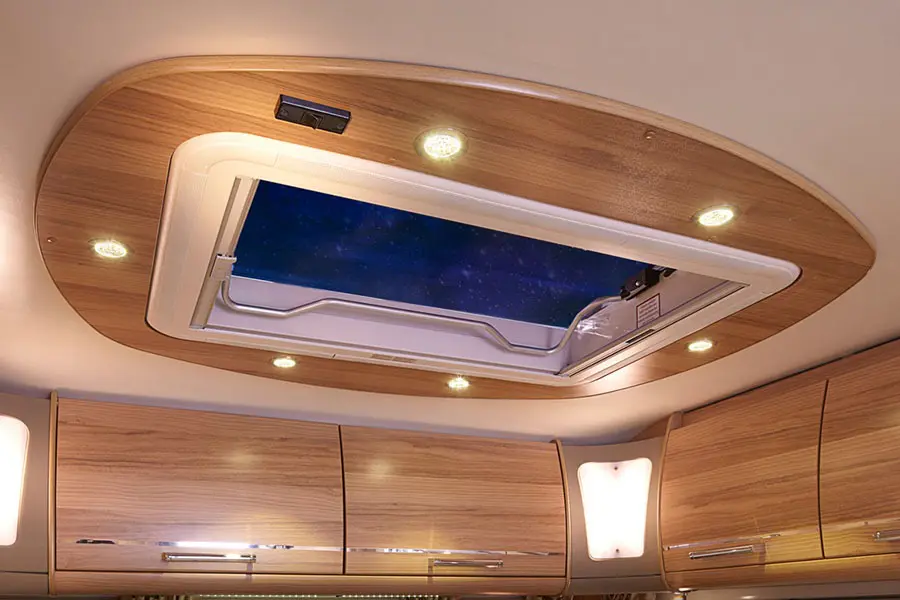

Full size Heki II tilting sunroofs over front saloon and kitchen
i

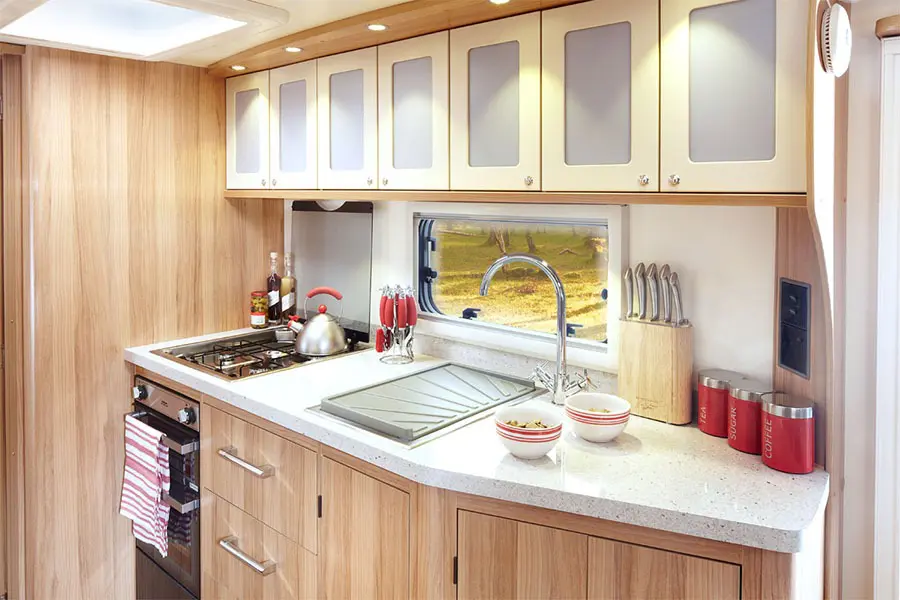

Sycamore kitchen with high gloss worktop laminate
i

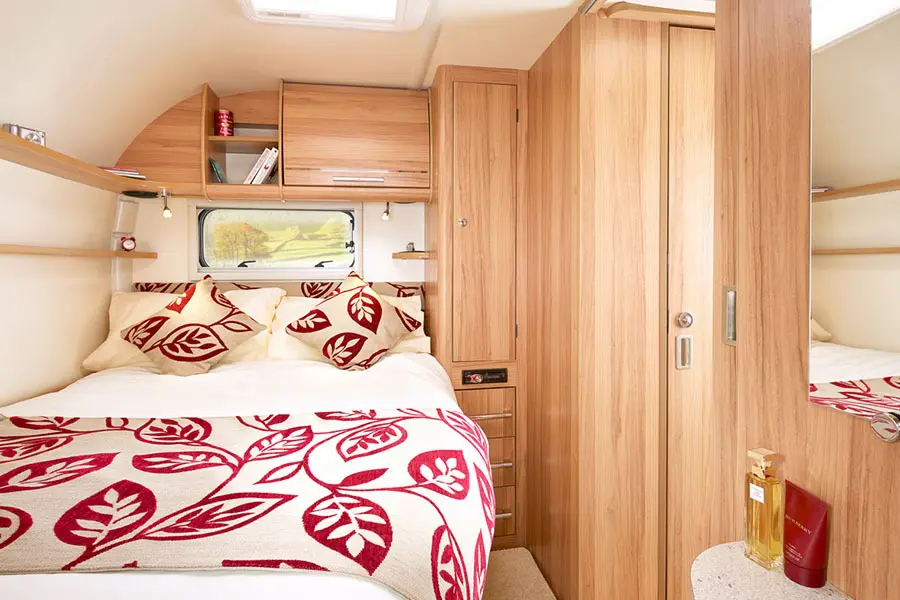

Sycamore bedroom
i

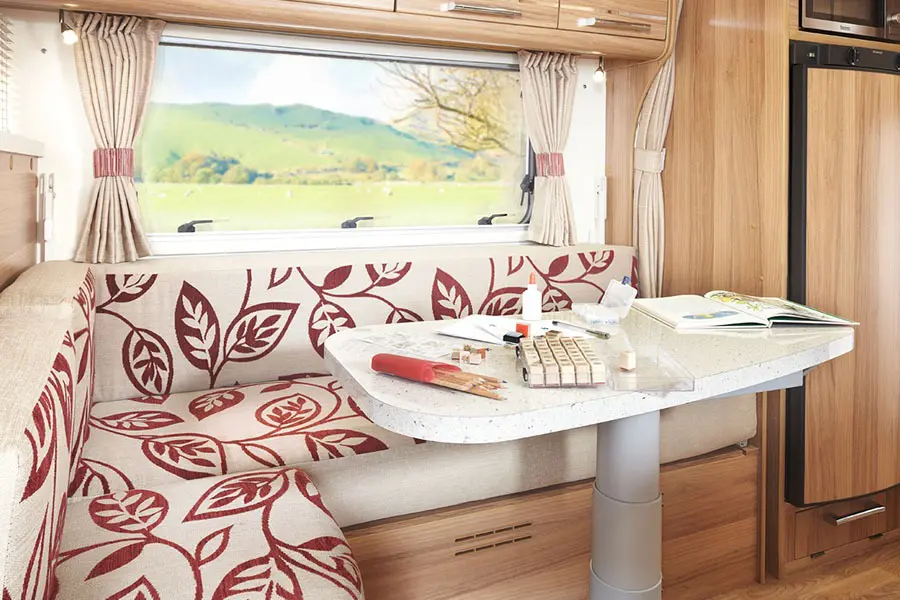

Sycamore dedicated L-Shaped side dinette with fixed table that converts into a bed
i

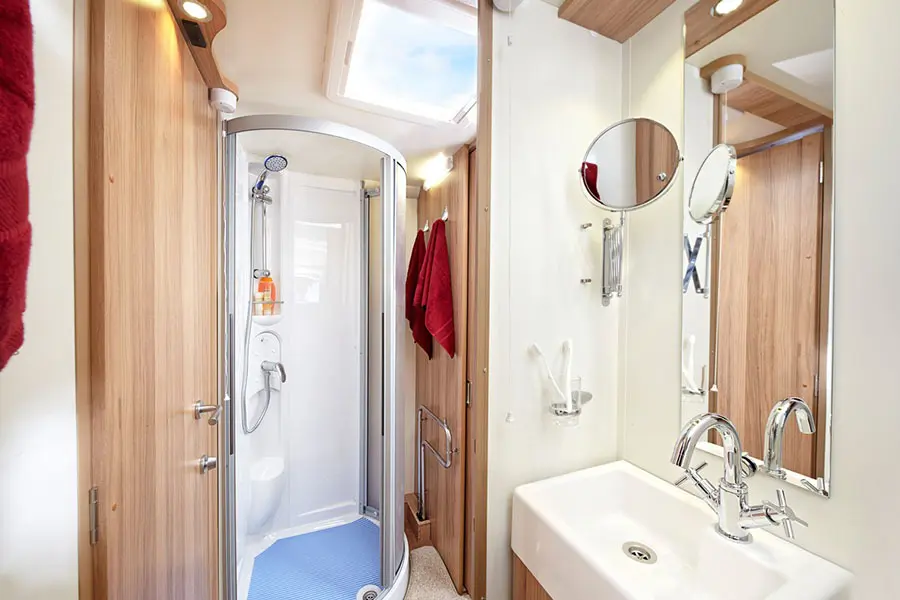

Washroom with fully lined circular shower cubicle with curved door
Details
- EN-1645 Grade III classification for heating and thermal insulation (Cold chamber tested)
- European Whole Vehicle Type Approval
- Structural interlocking aluminium extrusion external framework with no external fixing points and an integral water management system
- Six part fully bonded exterior panel assembly system featuring Panel thicknesses of: Sides 37mm, Ceiling 37mm & Floor 44mm
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
- Upper body panels incorporating low absorbency buffer zones surrounding window and door apertures
- Upper body panels cloaked in a single sheet impact resistant GRP
- Strengthened floor panel with GRP underside protection.
- Heavy duty AL-KO galvanised steel chassis featuring additional cross members, braking system and running gear
- AL-KO AK 201 Heavy duty hitch and hitch lock
- AL-KO Heavy duty jockey wheel
- 13 pin DIN standard caravan connecting cable
- Heavy duty front and rear corner steadies
- Two part large aperture Hartel door with moulded interior liner, window, blind and waste bin
- LED awning light with integral water management system
- Polyclassic double glazed windows with night latch ventilation and integral water management system to front
- Polyclassic double glazed windows to side and rear with night latch ventilation
- Hartal colour matched white gas locker door with gas strut assisted opening mechanism
- Flush fit integral exterior service doors
- Large exterior access storage locker
- Twin front storage compartments
- Central front gas locker compartment which will accommodate all bottle types and sizes.
- Internal headroom of 1.96m (6’5”) throughout the length of the caravan
- Internal body length of 7.29m (23’11”)
- Internal width of 2.32m (7’8”)
- 25% additional floor space than a standard twin-axle touring caravan
- Bailey “Walnut” furniture finish
- Large front window shelf (35cm wide)
- Ventilation boards on fixed beds
- Aircraft style overhead locker system with split level storage and domestic style metal hinges
- Italian design overhead locker doors
- Curved overhead locker front corner sections with flush fit 12v lights
- Contrasting kitchen overhead locker system with a dedicated cocktail cabinet
- Structural locker dividers with greater load bearing capacity
- Large capacity front overhead lockers
- Large sideboard unit with dedicated TV station
- Streamlined caravan furniture units featuring flush fit doors
- Pull out kitchen storage unit and dedicated cutlery tray
- Soft shut drawer units
- Solid domestic style washroom door with metal handle
- Additional washroom storage units including a fitted linen basket
- High gloss kitchen worktop laminate
- Premium quality fixtures and fittings in chrome finish
- Domestic foam filled upholstery featuring premium quality fabrics, high density filling and superior cushion construction
- Domestic style wrap-around seating u-shaped front sofa (which converts into a double bed at night)
- Standard ‘Sherwood’ soft furnishings with coordinating curtains and scatter cushions
- De-Luxe sprung double bed mattress
- Dedicated dinette area featuring a practical wall mounted table, a bench seat, two free-standing stools and dedicated LED down lighters (Willow only)
- Dedicated L-shaped side dinette with fixed table (which converts in to a bed at night) (Sycamore only)
- Dressing table and stool situated in the bedroom
- Deep pile loose fit drop in carpets in front lounge (50 oz pile density) & rear bedroom (70 oz pile density)
- Wall mounted magazine rack
- 230v power supply with 8 interior sockets (model specific) & one exterior socket
- Two TV stations with 230v, 12v and aerial sockets (one for the living area and one in the bedroom)
- Status 530 telescopic directional television aerial
- Aerial point for portable satellite dish connection
- 12v LED internal spotlights
- Flush fit 12v locker corner lights
- 12v ceiling lights
- Additional LED pelmet lights in timber roof light surround
- Additional LED pelmet lights above central kitchen
- Centrally located electrical control panel
- Domestic style consumer unit with dedicated access door
- Switch mode battery charger with 20 amps output
- RCD/MCB protection for mains electric system
- 25 metre mains connecting lead.
- Alde Hydronic Compact 3010 programmable radiator heating system with combined water heating
- Dual fuel 3.4 Kw gas and 3 Kw electric power sources
- Programmable daily timer
- Propane/Butane 30mb gas regulator mounted in gas locker compartment
- Exterior gas BBQ point
- Whale Aqua smart II on-board water pump
- Chassis mounted underslung water tank
- Inboard pressurised hot and cold fresh water system with reinforced hosing
- Inboard rigid pipe waste plumbing system
- Swivel Thetford C-260 ceramic bowl cassette toilet with integrated header tank
- Domestic style swan-neck kitchen mixer tap
- Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
- Fully lined circular shower cubicle with curved door
- ‘Belfast’ style large capacity washroom sink
- Domestic style washroom mixer tap
- Shaving mirror
- Two Alde heated towel rails in washroom
- Dometic 117 litre refrigerator with electronic ignition and detachable full width freezer compartment (capacity increases to 145 litres when freezer compartment is removed)
- Thetford recessed 4-burner hob unit with 3 gas burners and one electric hotplate incorporating flush fitting glass hinged lid, conveniently located controls and rear splash back
- Thetford combined grill and domestic style glass fronted oven with electronic ignition and flame failure device
- Thetford large capacity recessed sink with removable draining board
- Stainless steel 700 watt microwave oven conveniently located at eye level
- Chopping board
- Washing up bowl
- Remis pleated flyscreen and sunblinds to all caravan windows
- Horrex pleated full length flyscreen to exterior door
- Full size Heki II tilting sunroofs over front saloon and kitchen
- Midi Heki roof light located over rear bedroom
- Mini Heki roof light located over washroom area
- Two branded Radio/CD/MP3 players with iPod/ MP3 player connection point in dedicated locker housing (one for the living area and one in the bedroom)
- Branded dual cone stereo speakers for superior sound quality
- Smoke alarm & carbon monoxide alarm
- CRiS identity number etched to windows and caravan chassis
- Concealed security data chip within caravan construction
Year last produced
2013
Range
Retreat
Model
Sycamore
Series
Series 1
Berths
6
Internal Length
7.292m / 23′11″
Shipping Length
8.957m / 29′5″
Overall Width
2.480m / 8′2″
Overall Height
2.63m / 8′8″
Internal Headroom
1.96m / 6′5″
Awning Size
1177cm
Tyre Sizes
185/65 R14 93N
MTPLM
2287kg
MRO
2094kg
Total User Payload
193kg
Bed Sizes:
Front Double
6'6" x 4'6" Measured from the widest point
Front Single
6'6" x 1'9" Measured from the widest point
O/S Single
6'1" x 4'2" Measured from the widest point
O/S Overhead Single
5'10" x 2'0" Measured from the widest point
Rear Fixed Double
6'3" x 4'4" Measured from the widest point
