Pursuit 530-4 Series 1

2013 - 2017

Pursuit 530-4

Shipping Length
7.380m / 24′3″
Internal Length
5.713m / 18′9″
Overall Width
2.230m / 7′4″
1175kg more info

All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.

Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.

Key Features

  • Alu-Tech bodyshell construction
  • Status 550 telescopic directional digital television aerial
  • 14” TUV Tested Alloy wheels
  • High security entrance door lock
  • Dual fuel Truma Combi boiler (2kw gas & 1.8kw electric)
  • Thetford Duplex combination oven and grill
  • Thetford 3-burner gas hob
  • Dometic 103 litre refrigerator
View full screen gallery


  • Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
  • Five part fully bonded exterior panel assembly system
  • Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
  • Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
  • Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
  • EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)
  • European Whole Vehicle Type Approved and certified by the National Caravan Council to be European Standard compliant
  • Distinctive duo-tone bodyshell colourways, in ‘Slate Grey’ and ‘Polar White’
  • AL-KO galvanised steel chassis, braking system and running gear
  • One piece integrated front and rear impact resistant bumpers
  • Design step up a-frame fairing
  • 14” TUV tested alloy wheels
  • Hartal two part exterior door with moulded interior liner and map pocket
  • LED awning light with integral water management system
  • Double glazed Polyplastic opening windows throughout
  • Midi and mini Heki roof lights located throughout the main habitation area
  • Centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
  • Status 550 telescopic directional digital television aerial
  • Twin front storage compartments (model specific)
  • Co-ordinating contemporary graphics scheme
  • Internal headroom of 1.96m (6’5”) throughout the length of the caravan
  • Body width of 2.23m (7’4”)
  • Bailey “Walnut” furniture finish
  • Large front window shelf

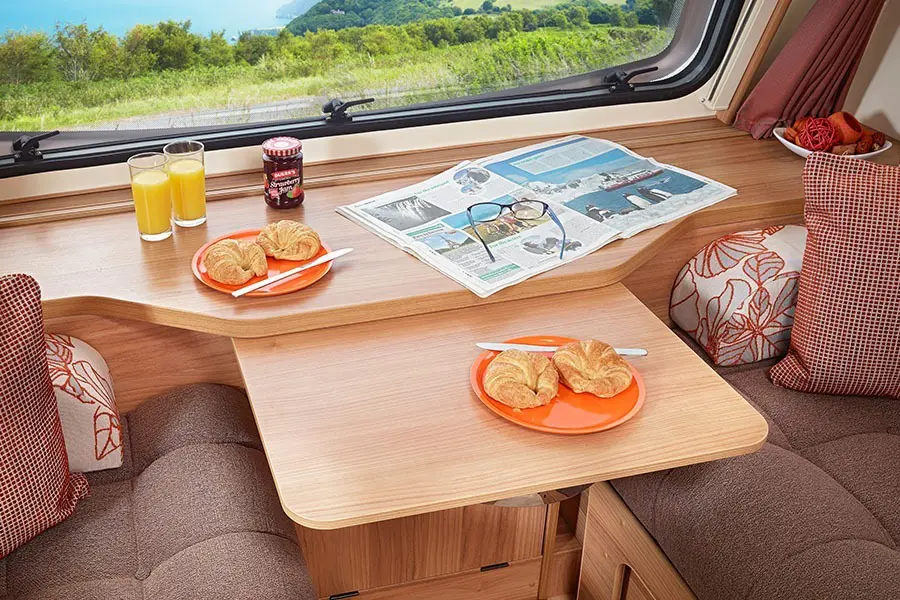

  • Recessed front drawer & slide out occasional table(model specific)
  • Drop down front table (model specific)
  • Construction front bed boxes with beech sprung bed box tops and slide out double bed make up (model specific)
  • Slatted front bed make-up system on easy glide track (model specific)
  • Backrest and seat ventilation boards
  • Free standing table with dedicated storage
  • Aircraft style overhead locker system with split level storage, domestic style metal hinges and chrome handles
  • Structural locker dividers with greater load bearing capacity
  • Dual finish Italian design overhead locker doors
  • Premium quality fixtures and fittings in polished chrome finish
  • High gloss kitchen and washroom worktop laminate
  • Drop down kitchen worktop extension (model specific)
  • Solid domestic style washroom door with domestic metal handle
  • Foam filled upholstery featuring premium quality fabrics, high density filling and superior cushion construction and De-luxe sprung mattresses (model specific)
  • Standard ‘Spice’ soft furnishings with co-ordinating lined curtains, arm rests or bolster cushions (model specific) and two standard size scatter cushions
  • Optional Amaro soft furnishings with co-ordinating curtains, arm rests or bolster cushions (model specific) and four standard size cushions
  • Wood effect floor vinyl
  • Loose fit drop in carpets
  • NEW 230v power supply with up to 5 interior sockets
  • TV station with 230v, 12v and a minimum of one aerial socket
  • 12v internal lighting system
  • Centrally located electrical control panel
  • Domestic style consumer unit with dedicated access door
  • Switch mode battery charger with 20 amps output
  • RCD/MCB protection for mains electric system
  • 25 metre mains connecting lead

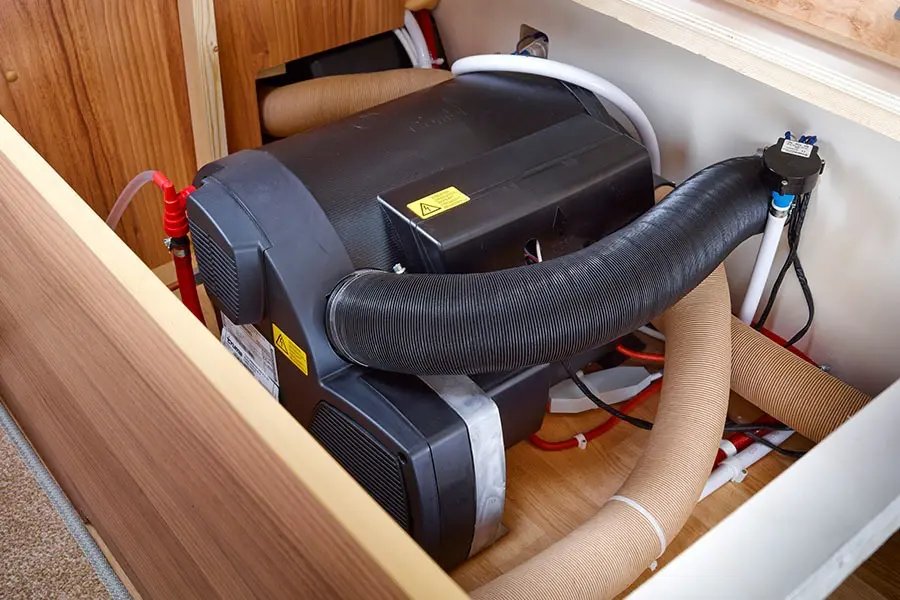

  • Dual fuel Truma Combi boiler (2kw gas & 1.8kw electric) with user friendly digital control panel including adjustable fan speed and water boost functions
  • Propane/Butane 30mb gas regulator mounted in gas locker compartment
  • Truma Ultraflow submersible pump
  • Inboard pressurised hot and cold fresh water system with reinforced hosing
  • Inboard rigid pipe waste plumbing system
  • Stainless steel circular kitchen sink and mixer tap, washing up bowl, drainer and chopping board
  • Thetford C-260 cassette toilet with integrated header tank

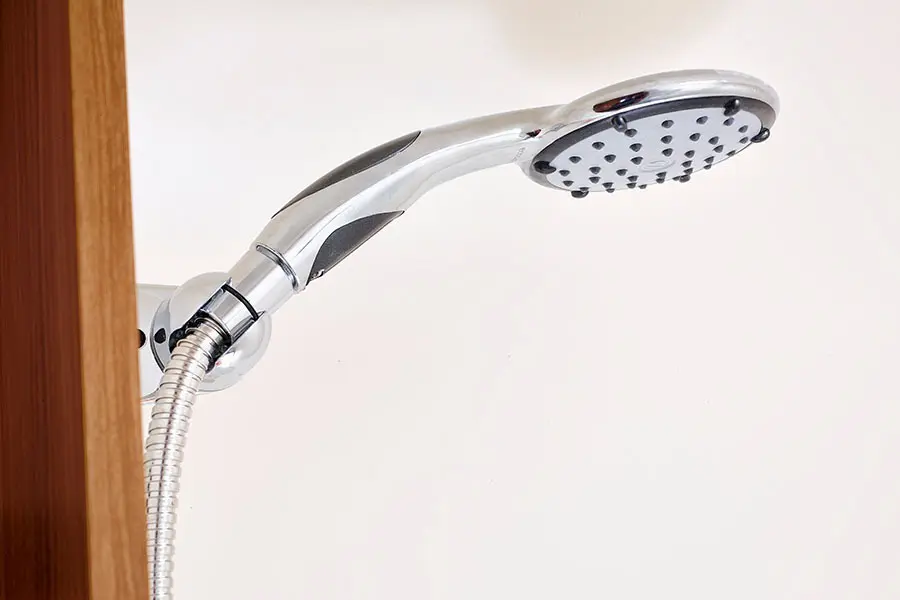

  • Inboard shower unit with ceramic ball mixer tap, Ecocamel shower head & bi-fold partition door
  • Washroom hand basin and mixer tap
  • WSL Individually Laser Balanced wheels fitted with ‘Security’ tyres and anti-tamper WSL Safety Bolts
  • Optional AL-KO Secure portable wheel lock
  • High security entrance door lock
  • CRiS identity number anti tamper labels attached to windows and inside gas locker
  • Concealed security data chip within caravan construction
  • Smoke alarm
  • Carbon Monoxide alarm
  • Dometic 103 litre refrigerator with electronic ignition

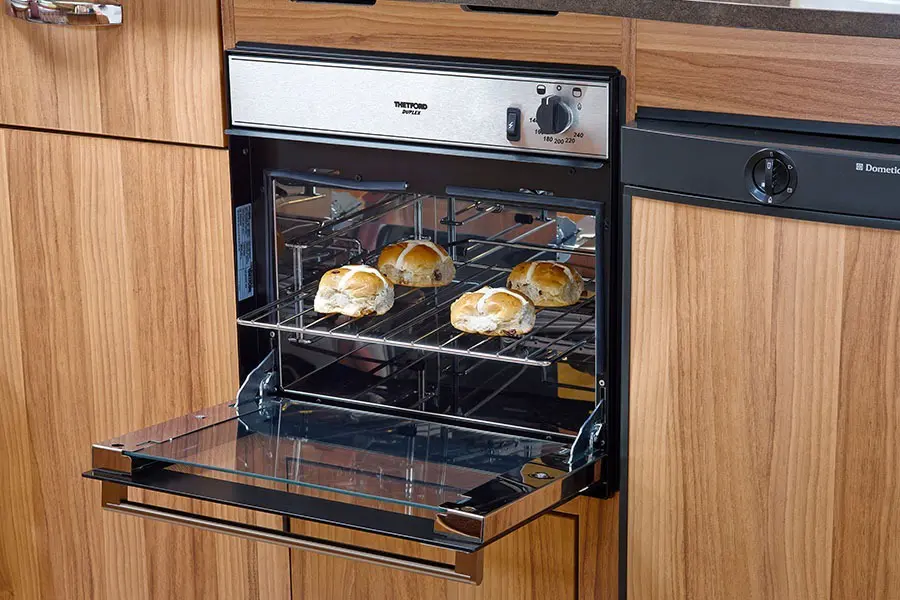

  • Thetford Duplex combination oven and grill with electronic ignition and flame failure device

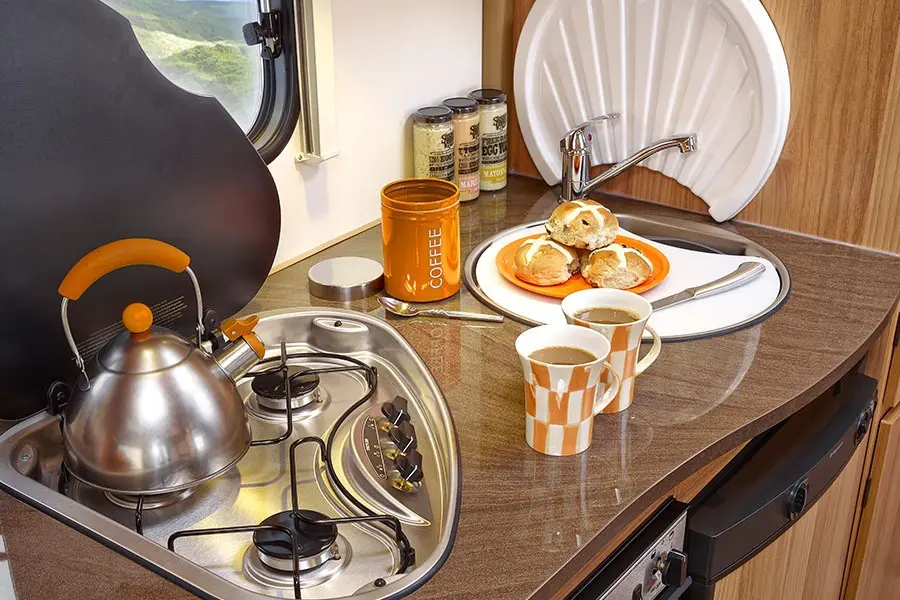

  • Thetford 3-burner gas hob incorporating flush fitting glass hinged lid and conveniently located controls
  • Remis retractable flyscreen and sunblinds to principal windows
  • Remis flyscreen and splash proof roller blind for kitchen and washroom windows
  • Premium Pack consisting of:
      • AL-KO AKS 3004 Stabiliser
      • Floor mounted steel spare wheel & retainer
      • Exterior door flyscreen
      • Stainless steel 800 watt microwave oven
      • Branded Radio/CD/MP3 player with iPod/MP3 player connection point
  • Polyplastic double glazed opening sunroof with night blind in front dome
  • AL-KO ATC Trailer Control System
  • AL-KO Secure portable wheel lock
  • Optional Amaro soft furnishings with co-ordinating curtains, arm rests or bolster cushions (model specific) and four standard size cushions
  • Bespoke caravan bedding sets to co-ordinate with caravan soft furnishings (model specific)
Year last produced
Series 1
Internal Length
5.713m / 18′9″
Shipping Length
7.380m / 24′3″
Overall Width
2.230m / 7′4″
Overall Height
2.61m / 8′7″
Internal Headroom
1.96m / 6′5″
Awning Size
Tyre Sizes
185/R14C LI104N
Total User Payload

Bed Sizes:

Front Double
4’10” x 6’8” Measured from the widest point
Front N/S Single
5’10” x 2’6” Measured from the widest point
Front O/S Single
5’2” x 2‘6” Measured from the widest point
Rear Fixed Double
6'3" x 4'6" Measured from the widest point
