Pegasus 462 Series 1

2009 - 2010

Pegasus 462

Berths
2
Axle
Single
Shipping Length
6.475m / 21′3″
Internal Length
4.902m / 16′1″
Overall Width
2.28m / 7′6″
MTPLM
1326kg
MRO
1180kg more info
Payload
146kg

All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.

Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.

Key Features

  • Two part large aperture Hartel door with moulded interior liner, window and waste bin
  • LED awning light
  • Twin front wet locker storage compartments
  • Gas strut assisted lift up front bed boxes for ease of access to floor level storage

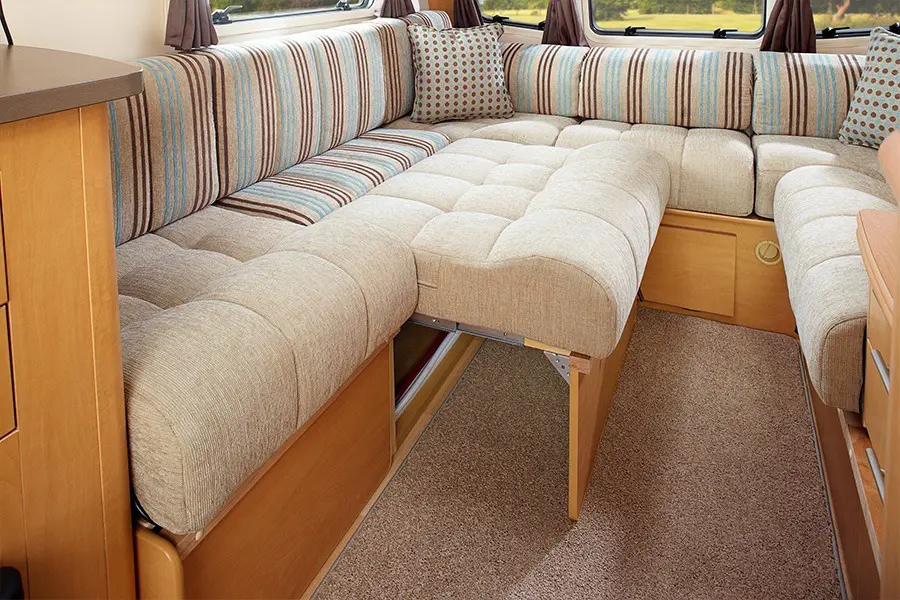

  • Dual purpose slide out units to front bed boxes to act as footrests by day and bed bases by night
  • Large front window shelf
  • Optional chest of drawer unit with slide-out occasional table
  • Flexible modular lounge allowing positioning of optional chest of drawer unit in up to three locations (model specific)
  • ‘Bailey Twist’ deep pile loose fit drop-in carpets
  • Supplementary arm rests
  • Wheeled fresh water container with dedicated storage (capacity 23 litres)
  • Spinflo recessed 4-burner hob unit and combined grill & domestic style glass fronted oven with electronic ignition and flame failure device
  • Large capacity Spinflo recessed sink with removable draining board and ceramic ball tap mixer
View full screen gallery

Details

  • Fully insulated shell to Grade III classification of EN1645-I
  • Structural interlocking aluminium extrusion external framework with no external fixing points and an integral water management system
  • Five part fully bonded exterior panel assembly system featuring: Panel thicknesses of: Sides 37mm, Ceiling 37mm & Floor 44mm
  • Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
  • Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, high density polystyrene insulation and a GRP inner wall lining
  • Upper body panels incorporating low absorbency buffer zones surrounding window and door apertures
  • Upper body panels cloaked in a single sheet Impact resistant 3000 Series aluminium skin
  • Chip resistant paint protection film applied to caravan lower front
  • Colour coded components for improved aesthetics
  • AL-KO galvanised steel chassis, braking system and running gear
  • AL-KO chassis mounted spare wheel carrier and spare wheel (steel spare wheel)
  • AL-KO caravan jack
  • AL-KO ATC Trailer Control System
  • AL-KO AKS 3004 Stabiliser
  • AL-KO shock absorbers
  • 13 pin DIN standard caravan connecting cable
  • 14” Alloy wheels with low profile tyres
  • Heavy duty rear corner steadies
  • Two part large aperture Hartel door with moulded interior liner, window, blind and waste bin
  • LED awning light
  • Flush fit integral Polyvision double glazed windows with integral water management system to front
  • Flush fit integral Polyvision double glazed windows to side and rear
  • Flush fit integral exterior service doors
  • Twin front wet locker storage compartments
  • Weatherproof LED lit front and rear grab handles for improved night time visibility
  • Central front gas locker compartment which will accommodate all bottle types and sizes
  • Internal headroom of 1.96m (6’5”) throughout the length of the caravan
  • Body width of 2.28m (7’6”)
  • Interiors tested and approved by FIRA under the Product Certification Scheme for Leisure Accommodation Vehicle Interiors (Touring Caravan Class)
  • Gas strut assisted lift up front bed boxes for ease of access to floor level storage area
  • Dual purpose slide out units to front bed boxes to act as footrests by day and bed bases by night
  • Large front window shelf (35cm wide)
  • Optional chest of drawer unit with slide out occasional table
  • Flexible modular lounge allowing positioning of optional chest of drawer unit in up to three locations (model specific)
  • Seat and backrest ventilation boards
  • Folding leaf free standing table
  • Occasional table (model specific)

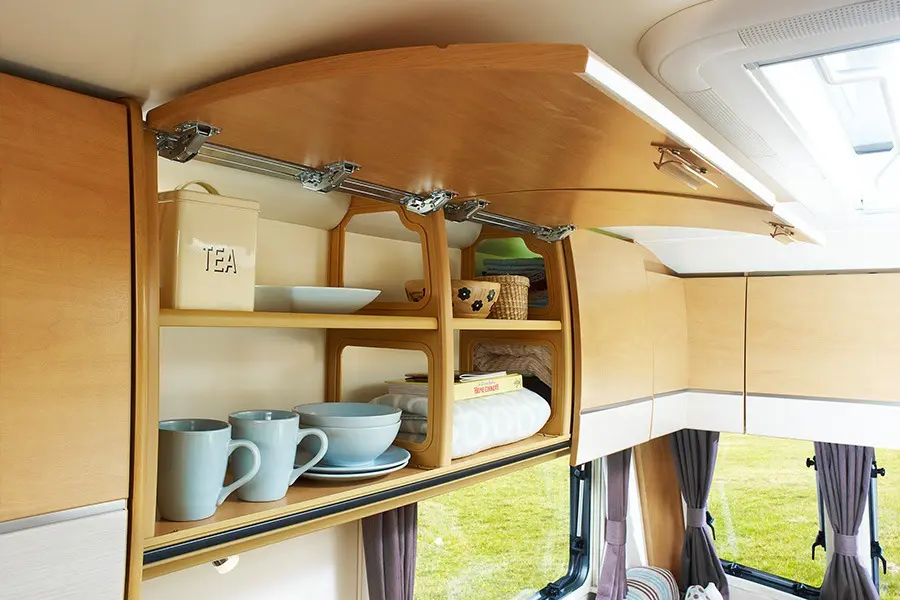

  • Floating fascia overhead locker system with split level storage, domestic style metal hinges and concealed catches
  • Flush profile dual finish Italian design overhead locker doors
  • Structural locker dividers with greater load bearing capacity
  • Streamlined caravan furniture units featuring flush fit doors
  • Soft shut drawer units
  • Solid domestic style washroom door with metal handle
  • Solid partition doors to end bedrooms (model specific)
  • Pull out kitchen storage unit
  • Premium quality fixtures and fittings in matt nickel
  • Fully sprung upholstery (except split cushions used in bunk make up) featuring premium quality fabrics, high density filling and superior cushion construction
  • Standard Gemini soft furnishings with co-ordinating curtains, shaped arm rests and scatter cushions in a wrap-around configuration
  • Optional Scorpio soft furnishings with co-ordinating curtains, shaped arm rests and scatter cushions in a wrap-around configuration
  • Optional Capricorn soft furnishings with co-ordinating curtains, shaped arm rests and scatter cushions in a wrap-around configuration
  • ‘Bailey Twist’ deep pile loose fit drop in carpets
  • Supplementary arms rests
  • Fabric mounted magazine rack
  • 230v power supply with three interior and one exterior socket
  • TV station with 230v/12v/aerial sockets
  • Status 530 telescopic directional television aerial
  • 12v internal lighting
  • Centrally located control panel
  • Domestic style consumer unit with dedicated access door
  • Switch mode battery charger with 20 amps output
  • RCD/MCB protection for mains electric system
  • 25 metre mains connecting lead
  • Truma 3002 3kw gas heater with electric spark ignition and supplementary 230v Ultraheat system with silent running night setting
  • Truma Ultratherm and blown air distribution system
  • Truma Ultrastore water heater (gas/electric operation)
  • Propane/Butane 30mb gas regulator mounted in gas locker compartment
  • Exterior gas BBQ point
  • Whale Aqua smart II on-board water pump
  • Wheeled fresh water container with dedicated storage (capacity 23 litres)
  • Inboard pressurised hot and cold fresh water system with reinforced hosing
  • Inboard rigid pipe waste plumbing system
  • Inboard shower unit with ceramic ball mixer tap
  • Fully lined shower cubicle (model specific)
  • Swivel Thetford C-250 cassette toilet with integrated header tank
  • Dometic 115 litre refrigerator with electronic ignition and detachable full width freezer compartment (capacity increases to 122 litres when freezer compartment is removed)
  • Spinflo recessed 4-burner hob unit incorporating flush fitting glass hinged lid, conveniently located controls and rear splash back
  • Spinflo combined grill and domestic style glass fronted oven with electronic ignition and flame failure device
  • Large capacity Spinflo recessed sink with removable draining board and ceramic ball mixer tap
  • Microwave oven
  • Chopping board
  • Washing up bowl
  • Horrex pleated flyscreen and sunblinds to all side and rear windows
  • Horrex retractable flyscreen and sunblinds to all front windows
  • Horrex pleated full length flyscreen to exterior door
  • Omnivent dual action rooflight mounted extractor fan
  • Full size Heki II tilting sunroof
  • Mini Heki roof light located over rear bedroom (model specific)
  • Branded combination home entertainment system featuring a 16” flat screen television and DVD player
  • Branded Radio/CD/MP3 player with iPod/MP3 player connection point
  • Branded dual cone stereo speakers for superior sound quality
  • TRACKER Monitor Thatcham TQA Approved Stolen Caravan Recovery System
  • TRACKER alarm
  • AL-KO Secure portable wheel lock
  • CRiS identity number etched to windows and caravan chassis
  • Concealed security data chip within caravan construction
Year last produced
2010
Range
Pegasus
Model
462
Series
Series 1
Berths
2
Internal Length
4.902m / 16′1″
Shipping Length
6.475m / 21′3″
Overall Width
2.28m / 7′6″
Overall Height
2.63m / 8′8″
Internal Headroom
1.96m / 6′5″
Awning Size
968cm
Tyre Sizes
185 / R14LI104
MTPLM
1326kg
MRO
1180kg
Total User Payload
146kg

Bed Sizes:

Front Saloon
6’10” x 6’3” Measured from the widest point
Front O/S Single
6’3” x 2’3” Measured from the widest point
Front N/S Single
6’3” x 2’3” Measured from the widest point
