Olympus 462
Berths
2
Axle
Single
Shipping Length
6.152m / 20′2″
Internal Length
4.579m / 15′0″
Overall Width
2.19m / 7′2″
MTPLM
1263kg
MRO
1121kg
more info
Payload
142kg
All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.
Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.
Key Features
- Twin front wet locker storage compartments
- Weatherproof LED lit front grab handles for improved night time visibility
- Truma 3002 3kw gas heater with electronic ignition, silent running night setting and supplementary 230v Ultraheat system
- Truma Ultratherm and blown air distribution system
- Truma Ultrastore water heater (gas/electric operation)
- Large front window shelf (35cm wide)
- Standard ‘Monaco’ or optional ‘Andorra’ soft furnishings with co-ordinating curtains, shaped arm rests and scatter cushions in a wrap-around configuration
- Thetford 107 litre refrigerator with full width freezer compartment
- Spinflo recessed 4-burner hob unit incorporating flush fitting glass hinged lid, conveniently located controls and rear splash back
- Spinflo combined grill and domestic style glass fronted oven with electronic ignition and flame failure device
- Large capacity Spinflo recessed sink with removable draining board and ceramic ball mixer tap
- Branded Radio/CD/MP3 player with iPod/MP3 player connection point
View full screen gallery
![Olympus Series 1 Front lounge]()
![Floating fascia overhead locker system with split level storage, domestic style metal hinges and concealed catches]()
![Fully lined shower cubicle (model specific)]()
![Thetford 107 litre refrigerator with full width freezer compartment]()
![Spinflo recessed 4-burner hob unit incorporating flush fitting glass hinged lid, conveniently located controls and rear splash back]()
![Microwave oven]()
i
Olympus Series 1 Front lounge
i

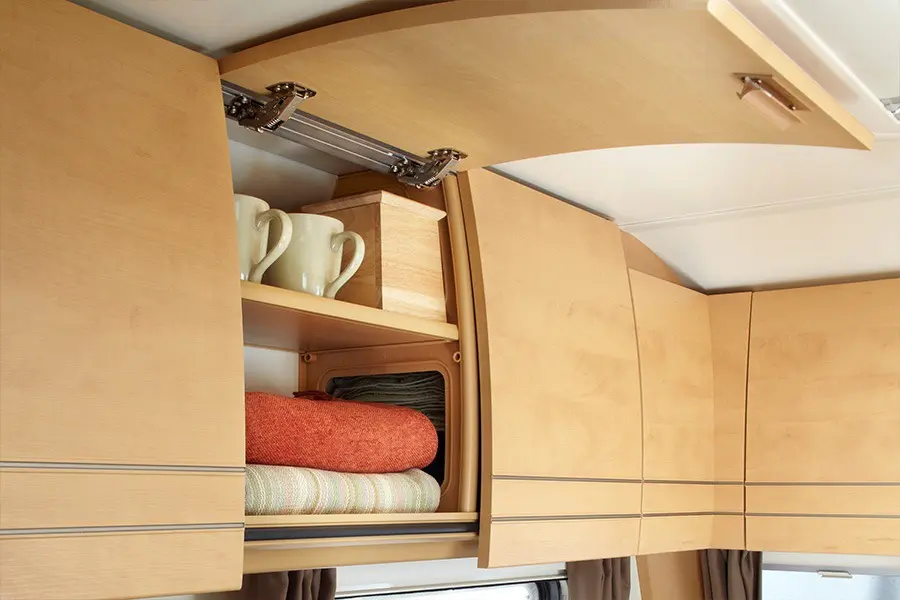

Floating fascia overhead locker system with split level storage, domestic style metal hinges and concealed catches
i

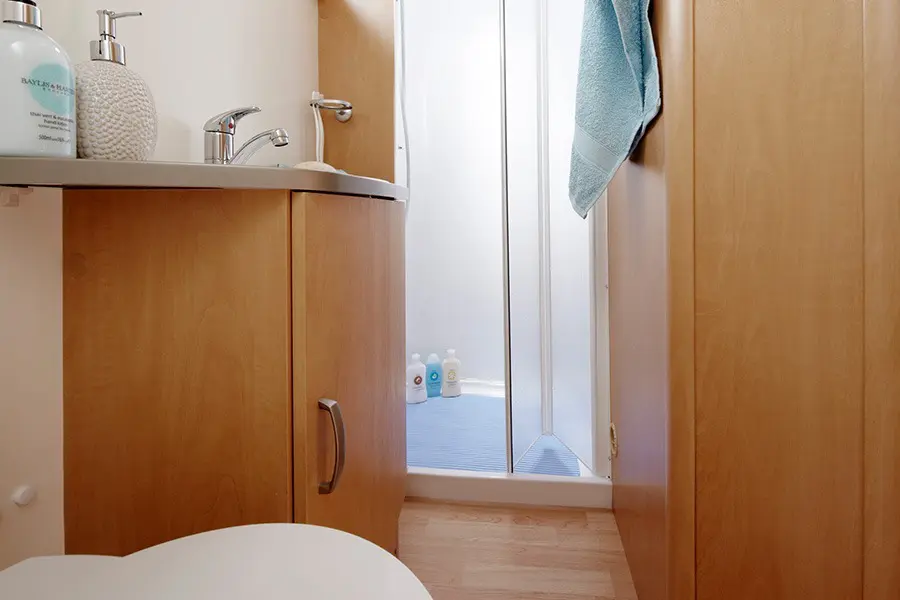

Fully lined shower cubicle (model specific)
i

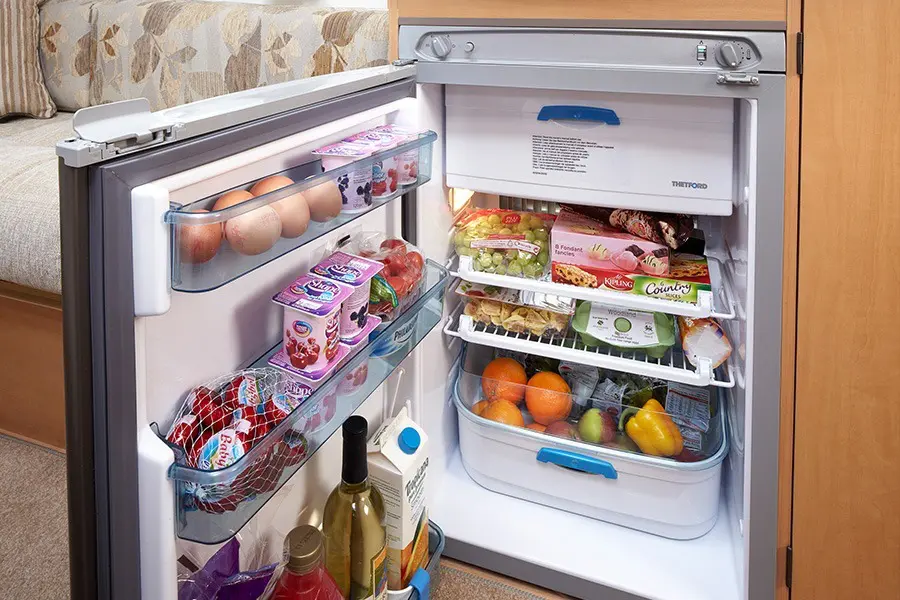

Thetford 107 litre refrigerator with full width freezer compartment
i

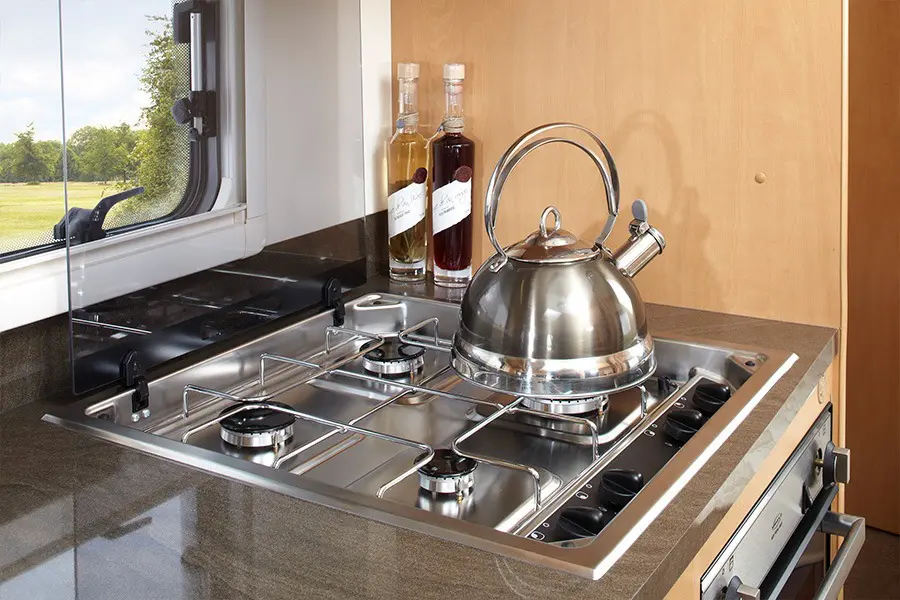

Spinflo recessed 4-burner hob unit incorporating flush fitting glass hinged lid, conveniently located controls and rear splash back
i
Microwave oven
Details
- Fully insulated shell to Grade III classification of EN1645-I
- Structural interlocking aluminium extrusion external framework with no external fixing points and an integral water management system
- Five part fully bonded exterior panel assembly system featuring: Panel thicknesses of: Sides 37mm, Ceiling 37mm & Floor 44mm
- Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
- Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
- Upper body panels incorporating low absorbency buffer zones surrounding window and door apertures
- Upper body panels cloaked in a single sheet Impact resistant 3000 Series aluminium skin
- Chip resistant paint protection film applied to caravan lower front
- Colour coded components for improved aesthetics
- AL-KO galvanised steel chassis, braking system and running gear
- AL-KO ATC Trailer Control System
- AL-KO chassis mounted spare wheel carrier and spare wheel (steel spare wheel)
- AL-KO AKS 3004 Stabiliser
- AL-KO shock absorbers
- 13 pin DIN standard caravan connecting cable
- 14” Alloy wheels with low profile tyres
- Two part large aperture Hartel door with moulded interior liner, window, blind and waste bin
- LED awning light with integral water management system
- Flush fit integral Polyvision double glazed windows with integral water management system to front
- Flush fit integral Polyvision double glazed windows to side and rear
- Flush fit integral exterior service doors
- Twin front wet locker storage compartments
- Weatherproof LED lit front grab handles for improved night time visibility
- Central front gas locker compartment which will accommodate all bottle types and sizes
- Internal headroom of 1.96m (6’5”) throughout the length of the caravan
- Large front window shelf (35cm wide)
- Self-supporting hinge sprung slatted bed box tops for ease of access
- Sprung bed box slats for extra comfort
- Pull out roller slatted bed
- Seat and backrest ventilation boards
- Optional chest of drawer unit with slide out occasional table
- Free standing table with dedicated storage
- Occasional table (model specific)
- Floating fascia overhead locker system with split level storage, domestic style metal hinges and concealed catches
- Structural locker dividers with greater load bearing capacity
- Flush profile overhead locker doors
- Streamlined caravan furniture units featuring flush fit doors
- Solid partition doors to washroom with domestic standard metal handle
- Solid partition doors to separate end bedroom (model specific)
- Bailey ‘Pear’ furniture veneer
- High gloss kitchen work top laminate
- Premium quality fixtures and fittings in a nickel finish
- Fully sprung upholstery (except split cushions used in bunk make up) featuring premium quality fabrics, high density filling and superior cushion construction
- Standard Monaco soft furnishings with co-ordinating curtains, shaped arm rests and scatter cushions in a wrap-around configuration
- Optional Andorra soft furnishings with co-ordinating curtains, shaped arm rests and scatter cushions in a wrap-around configuration
- Loose fit drop in carpets
- 230v power supply with three interior sockets
- TV station with 230v/12v/aerial sockets
- Status 530 telescopic directional television aerial
- 12v internal lighting
- Centrally located control panel
- Domestic style consumer unit with dedicated access door
- Switch mode battery charger with 20 amps output
- RCD/MCB protection for mains electric system
- 25 metre mains connecting lead
- Truma 3002 3kw gas heater with electronic ignition, silent running night setting and supplementary 230v Ultraheat system
- Truma Ultratherm and blown air distribution system
- Truma Ultrastore water heater (gas/electric operation)
- Propane/Butane 30mb gas regulator mounted in gas locker compartment
- Whale Aqua smart II on-board water pump
- Wheeled fresh water container with dedicated storage (capacity 23 litres)
- Inboard pressurised hot and cold fresh water system with reinforced hosing
- Inboard rigid pipe waste water plumbing system
- Inboard shower unit with ceramic ball mixer tap
- Fully lined shower cubicle (model specific)
- Non-slip shower mat
- Swivel Thetford C-250 cassette toilet with integrated header tank
- Thetford 107 litre refrigerator with full width freezer compartment
- Spinflo recessed 4-burner hob unit incorporating flush fitting glass hinged lid, conveniently located controls and rear splash back
- Spinflo combined grill and domestic style glass fronted oven with electronic ignition and flame failure device
- Large capacity Spinflo recessed sink with removable draining board and ceramic ball mixer tap
- Microwave oven
- Chopping board
- Washing up bowl
- Horrex pleated flyscreen and sunblinds to all side and rear windows
- Remis retractable flyscreen and sunblinds to all front windows
- Horrex pleated full length flyscreen to exterior door
- Full size Heki II tilting sunroof
- Mini Heki roof light located over kitchen area
- Mini Heki roof light located over rear bedroom (model specific)
- Branded Radio/CD/MP3 player with iPod/MP3 player connection point
- Branded dual cone stereo speakers for superior sound quality
- AL-KO Secure prepared Euro-axle featuring lock receiver plate with optional AL-KO Secure portable wheel lock
- CRiS identity number etched to windows and caravan chassis
- Concealed security data chip within caravan construction
Year last produced
2011
Range
Olympus
Model
462
Series
Series 1
Berths
2
Internal Length
4.579m / 15′0″
Shipping Length
6.152m / 20′2″
Overall Width
2.19m / 7′2″
Overall Height
2.63m / 8′8″
Internal Headroom
1.96m / 6′5″
Awning Size
936cm
Tyre Sizes
195/70 R1496N
MTPLM
1263kg
MRO
1121kg
Total User Payload
142kg
Bed Sizes:
Front Double
6’6” x 6’3” Measured from the widest point
Front N/S Single
6’3” x 2’3” Measured from the widest point
Front O/S Single
6’3” x 2’3” Measured from the widest point
