Approach Compact 520

2013 - 2014

Approach Compact 520

Berths
2
Designated Travelling Seats
4
Cab
Peugeot Graphite Cab
Engine
130bhp
Chassis
AL-KO AMC
Overall Body Length
5.999m / 19′8″
MTPLM
3500kg
MRO
2737kg more info
Payload
763kg

All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.

Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.

Key Features

  • Peugeot 2.2 Hdi 130 BHP engine with six speed manual gear box
  • Graphite cab with colour coded bumpers
  • Ultra-low profile AL-KO AMC Chassis
  • Pre-wired for satellite and aerial connection and rear view camera
  • ALDE Hydronic Compact 3010 programmable radiator heating system with combined water heating
  • 'Walnut' furniture finish & premium quality fixtures & fittings in polished chrome finish
  • Dometic 80 litre refrigerator with detachable freezer compartment (capacity increases to 85 litres when freezer is removed
  • Thetford Caprice anti-rattle combined oven and grill
  • Fully lined separate shower cubicle with bi-fold partition door

Details

  • Peugeot 3 year / 100,000 mile warranty
  • Peugeot 2.2 Hdi (High Pressure Direct Injection) 130 BHP engine with six speed manual gear box
  • Graphite cab with colour coded bumpers
  • Remote central locking for cab and habitation door
  • Electric windows
  • Electric heated wing mirrors with direction indicators
  • Variable power steering
  • Anti-lock braking system (ABS)
  • Electronic Brake Force Distribution (EBFD)
  • Emergency Brake Assist (EBA)
  • Engine immobiliser
  • Cruise control
  • Cab air conditioning
  • Driver and front passenger airbags
  • Fully adjustable upholstered driver and passenger seats with twin armrests
  • Map pockets on back of cab seats
  • Remis concertina windscreen and side window blinds
  • Removable cab carpet
  • Radio & CD Player (MP3 compatible) and 2 door speakers
  • Ultra-low profile AL-KO AMC Chassis
  • Wind-down floor mounted spare wheel carrier and spare wheel
  • Chassis prepared for towbar fitment
  • Michelin premium branded tyres
  • EN-1646 Grade III classification for heating and thermal insulation
  • Structural interlocking aluminium extrusion external framework with no external fixing points for additional strength and rigidity
  • Four part fully bonded exterior panel assembly system featuring: Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
  • Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
  • Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
  • Strengthened floor panel with GRP underside protection
  • Aero-dynamic & aesthetically enhanced front and rear bodyshell profiles
  • ‘Polar white’ bodyshell colour and co-ordinating graphics scheme

<ul>
<li>AL-KO outriggers fitted to AMC Chassis for enhanced floor strength</li>
<li>3-point seat belts on all designated travelling seats</li>
<li>Designated travel seat head rests (540)</li>
<li>Steel frame seat base supports for all designated travelling seats</li>
<li>Steel framed seat base tops with Velcro base cushion fastenings for all designated travelling seats</li>
<li>Dedicated storage location for both free-standing &amp; wall mounted tables</li>
<li>High security door lock</li>
<li>Smoke alarm</li>
<li>Carbon monoxide alarm</li>
</ul>

  • Dometic slim line flush fit habitation door with window, blind and bin plus a gas-strut assisted mechanism for smooth operation
  • Dometic pleated full length door flyscreen
  • Low level insulated habitation door well step with non-slip mat, grab handle & courtesy light

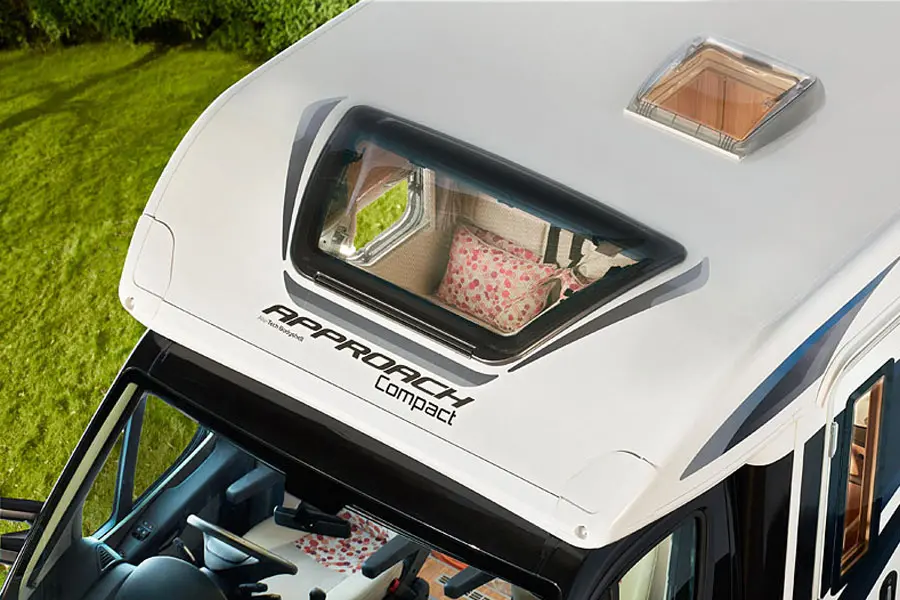

  • Polyplastic double glazed opening skylight with Remis night blind in front dome
  • Mini Heki roof light located over front lounge (model specific) & central kitchen
  • Midi Heki roof light located over rear lounge or bedroom (model specific)
  • Polyplastic double glazed windows throughout with night latch ventilation
  • Remis pleated flyscreens and blinds to all principal windows
  • Remis splash proof blinds for kitchen & washroom windows
  • Centrally mounted easy access exterior gas locker compartment with capacity to store 2 x 10kg bottles
  • Propane/Butane en-route crash sensor gas 30mb regulator mounted in gas locker compartment
  • Rear storage garage with large exterior access door and bicycle fixing rails (520)
  • Exterior 230v power inlet
  • Vision Plus satellite connection provision
  • Fixing points for rear mounted cycle rack
  • Fixing points for exterior ladder and roof rack (retailer fit required)
  • Internal headroom of up to 2.10m (6’9’)
  • Internal body width of 2.08m (6’8’’)
  • Bailey ‘Walnut’ furniture finish
  • Contrasting finish on kitchen cabinetry & overhead locker doors
  • Dual finish Italian design overhead locker doors
  • High gloss kitchen & washroom worktop finish
  • Premium quality fixtures and fittings in polished chrome finish
  • Drop down flaps on front bed box fascias for enhanced accessibility (540)
  • Sprung beech bed box tops for additional comfort
  • Electric operated ceiling mounted drop down double bed with sprung base (540)
  • Wall mounted table
  • Aircraft style overhead locker system with split level storage, domestic style metal hinges and positive door catches
  • Structural locker dividers with greater load bearing capacity
  • Standard ‘Trafalgar’ soft furnishings with coordinating curtains and two reversible scatter cushions
  • Optional ‘Piccadilly’ leatherette soft furnishings with co-ordinating curtains and two reversible scatter cushions
  • Fully sprung upholstery featuring premium quality fabrics, high density filling and superior cushion construction
  • Foam filled double and single bed mattress on a sprung base
  • ‘Bamboo’ finish high impact scratch resistant floor vinyl
  • Split section loose fit drop in carpets (50 oz pile density)
  • Alde Hydronic Compact 3010 programmable radiator heating system with combined water heating
  • Alde touch screen user-friendly control panel
  • Washroom radiator
  • Premium 110 ampere/hour Banner leisure battery
  • Dedicated under floor twin leisure battery storage locker (one leisure battery supplied as standard specification)
  • Digital electrical control panel with touch screen operation
  • 12v ambient and task lighting fittings throughout
  • Additional low level night lights
  • 230v power supply with up to five interior sockets
  • Up to two TV stations with 230v/12v/aerial sockets
  • Domestic style consumer unit with dedicated access door
  • Switch mode battery charger with 20 amps output
  • RCD/MCD protection for mains electric system
  • 25 metre mains connecting lead
  • Branded dual cone stereo speakers for superior sound quality
  • Pre-Wired for satellite and aerial connection and rear view camera.
  • Floor mounted Whale Aqua smart II on- board water pump with Aquasource layflat filling pipe
  • Pressurised hot and cold fresh water system with self priming pump
  • Rigid pipe waste plumbing system
  • 90 litre external insulated fresh water tank with baffles and level sensor
  • Fresh water tank heater for winter protection and overflow
  • 90 litre external waste water tank with baffles and level sensor
  • Dometic 80 litre refrigerator with electronic ignition and detachable full width freezer compartment. Capacity increases to 85 litres when freezer compartment is removed (520)
  • Dometic 117 litre refrigerator with electronic ignition and detachable full width freezer compartment. Capacity increases to 145 litres when freezer compartment is removed (540)

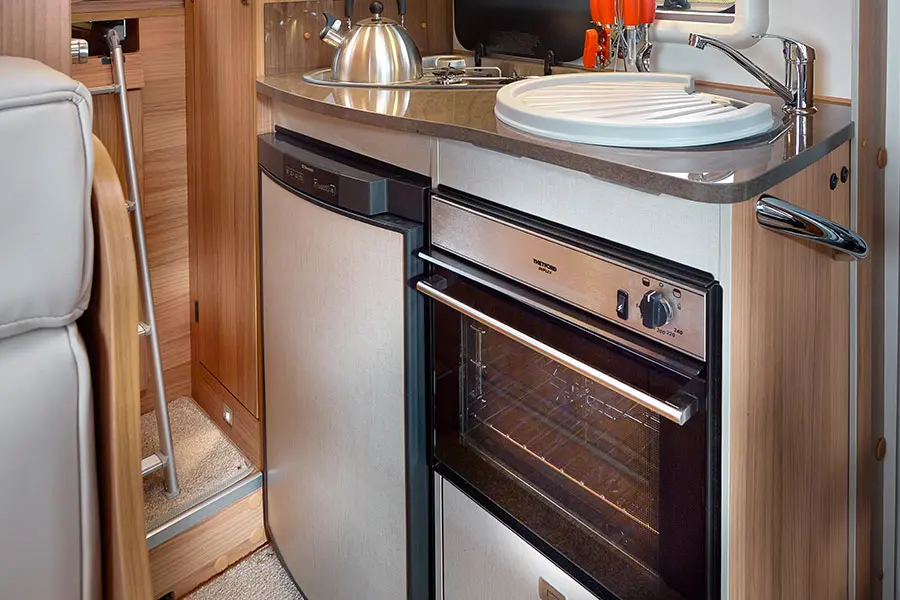

  • Thetford Duplex anti-rattle combination oven and grill
  • Thetford 3-burner gas hob incorporating flush fitting glass hinged lid and conveniently located controls
  • Stainless steel circular kitchen sink with mixer tap, circular washing up bowl, drainer and chopping board

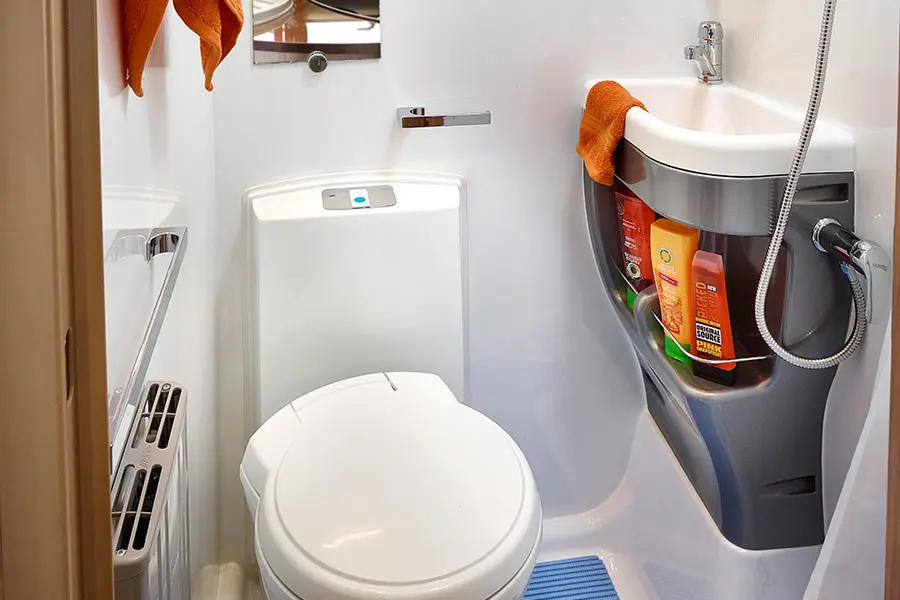

  • Thetford C-260 cassette toilet with integrated header tank
  • Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
  • Fully lined separate shower cubicle with bi-fold partition door (shower curtain fitted in 520)
  • Washroom hand basin with ceramic ball mixer tap
  • Optional ‘Piccadilly’ leatherette soft furnishings with co-ordinating curtains and two reversible scatter cushions
  • Bespoke motorhome bedding sets to co-ordinate with soft furnishings
Year last produced
2014
Range
Approach Compact
Series
Model
520
Designated Travelling Seats
4
Berths
2
Cab
Peugeot Graphite Cab
Engine
130bhp
Chassis
AL-KO AMC
Roof Profile
Low Profile
Overall Body Length
5.999m / 19′8″
Overall Habitation Width (inc marker lights)
2.346m / 7′8″
Overall Height
2.785m / 9′2″
Tyre Sizes
215/70 R15 LI109Q
MTPLM
3500kg
MRO
2737kg
Total User Payload
763kg
Max Recommended Braked Trailer Weight
2000kg
Thermal Insulation Grade
3
Gross Train Weight
5500kg
Gas Locker Capacity
2 x 10kg
Fresh Water Tank
90 litres
Waste Water Tank
90 litres

Bed Sizes:

Rear Double
2.020m x 1.370m (6’6’’ x 4’5’’) Measured from the widest point
