Approach Autograph 740

2013 - 2016

Approach Autograph 740

Berths
4
Designated Travelling Seats
2
Cab
Peugeot Graphite Cab
Engine
130bhp
Chassis
AL-KO AMC
Overall Body Length
7.450m / 24′5″
MTPLM
3500kg
MRO
3042kg more info
Payload
458kg

All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof.

Please remember this is a pre-owned model and will not necessarily be in stock at your local Approved Bailey Retailer. Please contact them before planning visit to confirm which pre-owned models they currently have available for sale.

Key Features

  • Peugeot 2.2 Hdi 130 BHP engine with six speed manual gear box
  • Graphite cab with colour coded bumpers
  • Ultra-low profile wide track AL-KO AMC Chassis
  • ALDE Hydronic Compact 3020 programmable radiator heating system with combined water heating
  • Pre-wired for satellite and aerial connection and rear view camera
  • Bailey 'Walnut' furniture finish and premium quality fixtures and fittings in polished chrome finish
  • Dometic 103 litre refrigerator with detachable freezer compartment (capacity increases to 110 litres when freezer is removed (625,730,750,765)
  • Dometic 117 litre refrigerator with detachable freezer compartment (capacity increases to 145 litres when freezer is removed (540, 740,745)
  • Dual fuel hob with electric hotplate and three gas burners
  • Thetford Caprice anti-rattle combined oven, grill and hob with electronic ignition and flame failure device (625,730,740,745,765)
  • Thetford Duplex anti-rattle combination oven and grill (540)
  • Fully lined separate shower cubicle with bi-fold partition door (shower curtain in 730)
View full screen gallery

Details

  • Peugeot Euro 5 Boxer Cab with Peugeot 2.2 Hdi (High Pressure Direct Injection) 130 BHP engine with six speed manual gear box
  • Graphite cab with colour coded bumpers
  • Premium brand tyres with tyre pressure sensors
  • Remote central locking for cab and habitation door
  • Electric windows
  • Electric heated wing mirrors with direction indicators
  • Variable power steering
  • Anti-lock braking system (ABS)
  • Electronic Brake Force Distribution (EBFD)
  • Emergency Brake Assist (EBA)
  • Front and rear brake pad monitoring system
  • Engine immobiliser
  • Cruise control
  • Cab air conditioning
  • Driver and front passenger airbags
  • Fully adjustable upholstered driver and passenger seats with twin armrests
  • Map pockets on back of cab seats
  • Remis concertina windscreen and side window blinds
  • Removable cab carpet
  • DAB Radio with Bluetooth connectivity, USB connection point (located in storage locker beneath the radio) and 2 door speakers
  • 2 x 12v sockets
  • Daytime running lights
  • Ultra-low profile wide track AL-KO AMC Chassis
  • Wind down floor mounted spare wheel carrier and spare wheel
  • Chassis prepared for towbar fitment
  • EN-1646-I Grade III classification for heating and thermal insulation
  • European Whole Vehicle Type Approval
  • Structural interlocking aluminium extrusion external framework with no external fixing points for additional strength and rigidity
  • Five part fully bonded exterior panel assembly system
  • Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
  • Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
  • Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
  • Strengthened floor panel with GRP underside protection
  • Aero-dynamic & aesthetically enhanced front and rear bodyshell profiles
  • ‘Polar white’ bodyshell colour and co-ordinating graphics scheme
  • Dometic slim line flush fit habitation door with window, blind and bin plus a gas-strut assisted mechanism for smooth operation
  • Dometic pleated full length door flyscreen
  • Low level insulated habitation door well step with non-slip mat, grab handle, curtain heater & courtesy light
  • Polyplastic double glazed opening skylight with Remis night blind in front dome
  • Mini Heki roof light located over front lounge (model specific) & central kitchen
  • Midi Heki roof light located over rear lounge or bedroom
  • Polyplastic double glazed windows throughout with night latch ventilation
  • Remis pleated flyscreens and blinds to all principal windows
  • Remis splash proof blinds for kitchen & washroom windows
  • Centrally mounted easy access exterior gas locker compartment with capacity to store 2 x 10kg bottles
  • Propane/Butane en-route gas 30mb regulator mounted in gas locker compartment

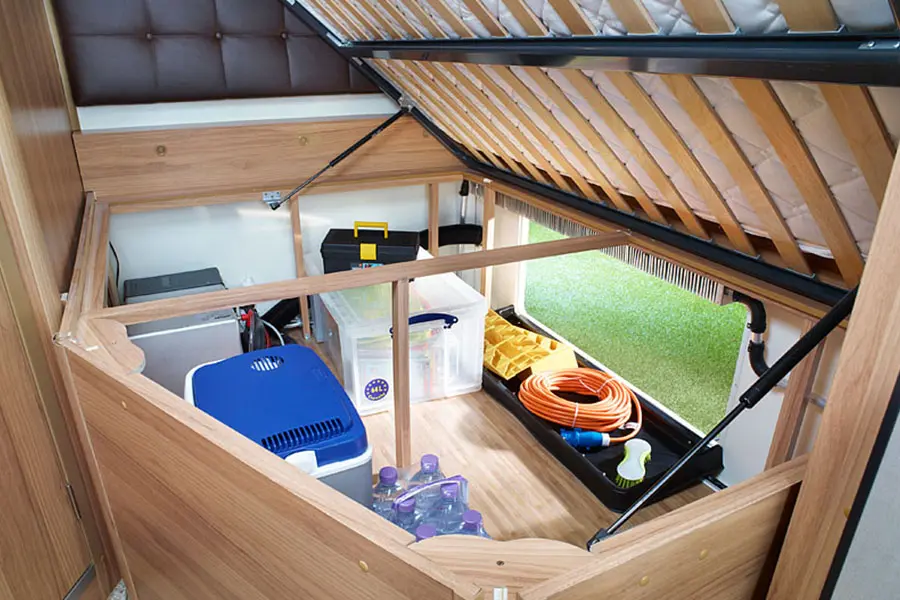

  • Enlarged underbed storage area with larger exterior access doors (540,730,740,745)
  • Dedicated under floor storage area suitable for folding chairs and BBQs with exterior access (625,765)
  • Exterior 230v power inlet
  • Vision Plus satellite connection provision
  • Fixing points for rear mounted cycle rack
  • Fixing points for exterior ladder and roof rack
  • Internal headroom of up to 2.10m (6’10’) | Internal body width of 2.27m (7’5”)
  • Bailey ‘Walnut’ furniture finish
  • Contrasting finish on kitchen cabinetry & overhead locker doors
  • Dual finish Italian design overhead locker doors
  • High gloss kitchen & washroom worktop finish
  • Premium quality fixtures and fittings in polished chrome finish
  • Slide out bed boxes for easy bed make up (730,740,745)
  • Roller slats for easy bed make up (625,765)
  • Drop down flaps on front bed box fascias for enhanced accessibility (730,740,745)
  • Deep-fill bed boxes with enhanced storage capacity (625,765)
  • Sprung beech bed box tops for additional comfort
  • Automatically operated ceiling mounted drop down double bed with sprung base (540,765)
  • Fixed double beds with aluminium frames & gas strut assisted opening mechanism (730,740,745)
  • Free standing and/or wall mounted table (both in 765)
  • Aircraft style overhead locker system with split level storage, domestic style metal hinges and positive door catches
  • Structural locker dividers with greater load bearing capacity
  • Standard ‘Trafalgar’ soft furnishings with co-ordinating curtains and two reversible scatter cushions
  • Optional ‘Piccadilly’ soft furnishings with co-ordinating curtains and two reversible scatter cushions
  • Fully sprung upholstery featuring premium quality fabrics, high density filling and superior cushion construction
  • De-Luxe sprung double bed mattresses (730,740,745)
  • Foam filled double bed mattress on a sprung base (540,765)
  • Wood effect floor vinyl
  • Under floor dedicated storage area suitable for footwear (625,730,765)
  • Split section loose fit drop in carpets (50 oz pile density)
  • Premium 110 ampere/hour Banner leisure battery
  • Dedicated under floor twin leisure battery storage locker (one leisure battery supplied as standard specification)
  • Digital electrical control panel with touch screen operation
  • 12v ambient and task lighting fittings throughout
  • Additional ambient overlocker and under kitchen worktop lighting
  • Additional low level night lights
  • 230v power supply with up to five interior sockets
  • Up to two TV stations with 230v/12v/aerial sockets
  • Domestic style consumer unit with dedicated access door
  • Switch mode battery charger with 20 amps output
  • RCD/MCD protection for mains electric system
  • 25 metre mains connecting lead
  • Branded dual cone stereo speakers for superior sound quality
  • Pre-Wired for satellite and aerial connection and rear view camera
  • Alde Hydronic Compact3020 programmable radiator heating system with combined water heating
  • Touch screen user-friendly control panel
  • Washroom radiator
  • Dual fuel 3.4 Kw gas and 3 Kw electric power sources
  • Programmable daily timer
  • Floor mounted Whale Aqua smart II on- board water pump with Aquasource layflat filling pipe
  • Pressurised hot and cold fresh water system with self priming pump
  • Rigid pipe waste plumbing system
  • 90/97 litre external insulated fresh water tank with baffles and level sensor (540/625,730,740,745,765)
  • Fresh water tank heater for winter protection and overflow
  • 90/102 litre external waste water tank with baffles and level sensor (540/625,730,740,745,765)
  • Thetford C-260 cassette toilet with integrated header tank
  • Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
  • Fully lined separate shower cubicle with bi-fold partition door (540,625,740,745,765)
  • Shower Curtain (730)
  • Washroom hand basin with ceramic ball mixer tap
  • Dometic 103 litre refrigerator with electronic ignition and detachable full width freezer compartment. Capacity increases to 110 litres when freezer compartment is removed (625,730,765)
  • Dometic 117 litre refrigerator with electronic ignition and detachable full width freezer compartment. Capacity increases to 145 litres when freezer compartment is removed (540, 740,745)
  • Thetford Caprice anti-rattle combined oven, grill and hob with electronic ignition and flame failure device (625,730,740,745,765)
  • Thetford Duplex anti-rattle combination oven and grill (540)
  • Dual-fuel hob with electric hotplate and 3 gas burners (625,730,740,745,765)
  • Thetford 3-burner gas hob incorporating flush fitting glass hinged lid and conveniently located controls (540)
  • Stainless steel 800 watt microwave oven conveniently located at eye level in a dedicated overhead locker for enhanced sound proofing
  • Stainless steel circular kitchen sink with swan-neck mixer tap, circular washing up bowl, drainer and chopping board
  • AL-KO outriggers fitted to AMC Chassis for enhanced floor strength
  • 3-point seat belts on all designated travelling seats (540,745,765)
  • Designated travel seat head rests (540,765)
  • Steel frame seat base supports for all designated travelling seats (540,745,765)
  • Steel framed seat base tops with Velcro base cushion fastenings for all designated travelling seats (540,745,765)
  • Steel framed structural bulkhead to support all rear-facing designated travelling seats (765)
  • Dedicated storage location for both free-standing & wall mounted tables
  • High security door lock
  • Smoke alarm
  • Carbon monoxide alarm
  • Optional ‘Piccadilly’ leatherette soft furnishings with co-coordinating curtains and two reversible scatter cushions
  • Bespoke motorhome bedding sets to co-ordinate with soft furnishings
Year last produced
2016
Range
Approach Autograph
Series
Model
740
Designated Travelling Seats
2
Berths
4
Cab
Peugeot Graphite Cab
Engine
130bhp
Chassis
AL-KO AMC
Roof Profile
Low Profile
Overall Body Length
7.450m / 24′5″
Overall Habitation Width (inc marker lights)
2.412m / 7′11″
Overall Height
2.785m / 9′2″
Tyre Sizes
215/70 R15 LI109Q
MTPLM
3500kg
MRO
3042kg
Total User Payload
458kg
Max Recommended Braked Trailer Weight
2000kg
Thermal Insulation Grade
3
Gross Train Weight
5500kg
Gas Locker Capacity
2 x 6kg
Fresh Water Tank
97 litres
Waste Water Tank
102 litres

Bed Sizes:

Front Double
1.224m x 2.250m (4’0” x 7’4”) Measured from the widest point
Rear Double
1.980m x 1.350m (6’5’’ x 4’5”) Measured from the widest point
